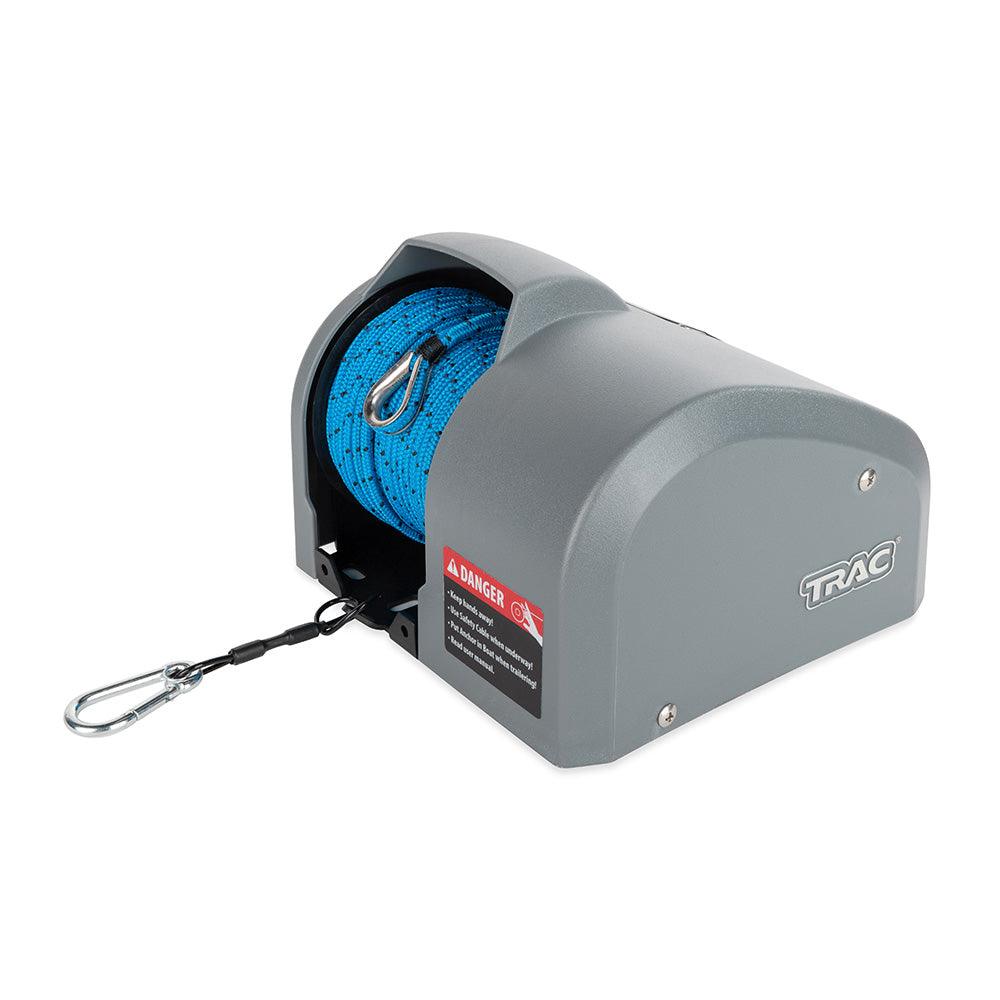

TRAC Outdoors Angler 30-G3 Electric Anchor Winch w/AutoDeploy

Angler 30-G3 Electric Anchor Winch with AutoDeploy

The TRAC Outdoors Angler 30-G3 Electric Anchor Winch with AutoDeploy allows you to raise and lower your anchor with easy-to-use buttons automatically.  AutoDeploy works by simply pressing and releasing the down button.  When the anchor reaches the bottom, the winch will shut off, holding the boat in place.

It has a maximum anchor capacity of 30 lb. and provides simple, smooth operation with excellent holding power. This winch features a high-efficiency, 12 V, all-steel gear motor that uses less battery power than other brands.

*Anchor not included

Technical Specifications

• Boat Size - Up to 22'
• Anchor Capacity - 30 lb
• Anchor Deployment - Power Down or AutoDeploy Down
• Rope Speed Down - 70 FPM
• Rope Speed Up - 65 FPM
• Power - 12V
• Dimensions (L x W x H) - 10" x 9.75" x 5.75"

In the Box:

• Winch

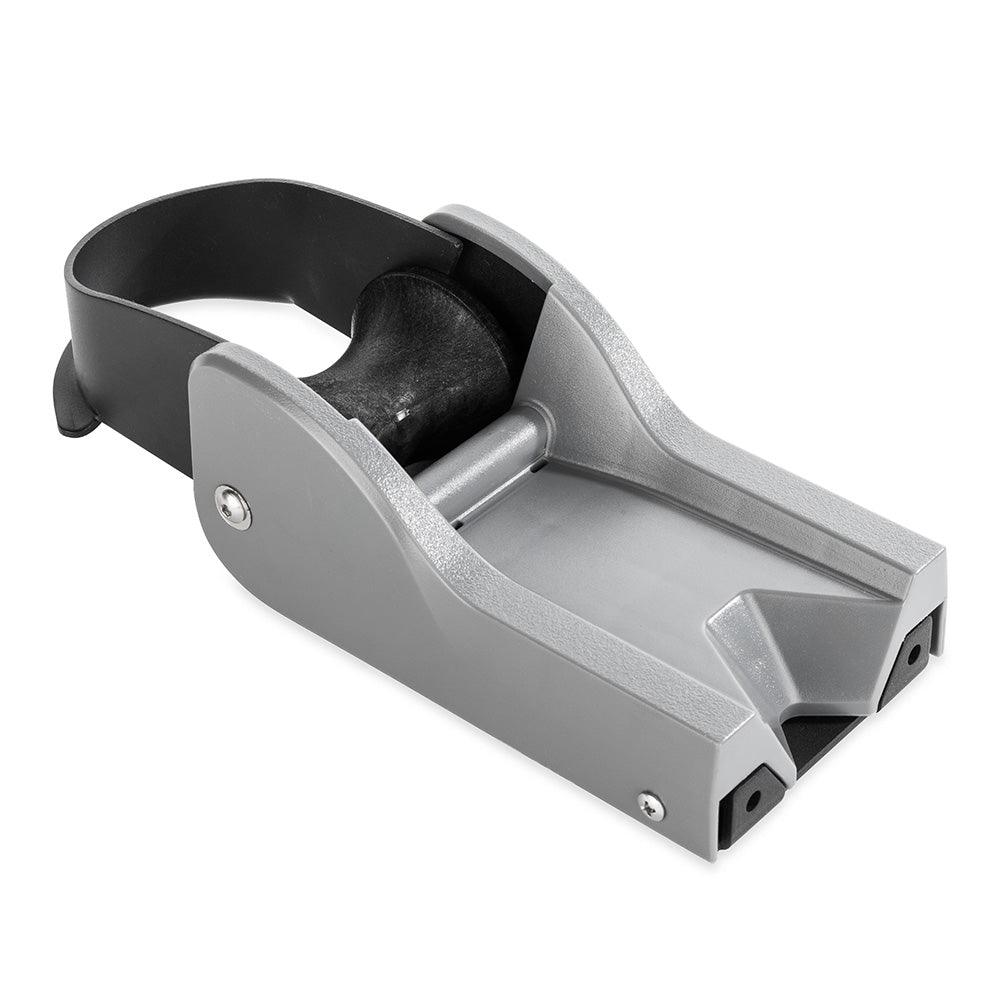

• Anchor roller
• 100' of 3/16" pre-wound double braid anchor rope

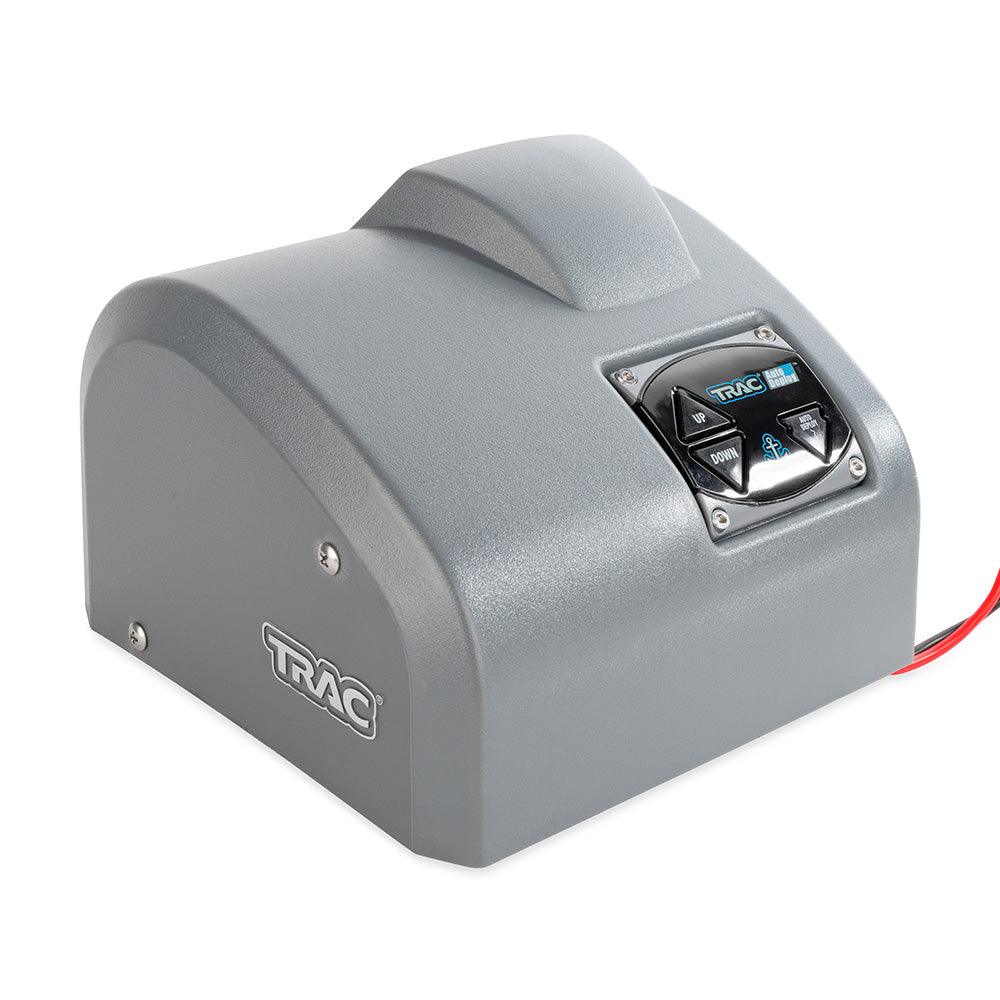

• Sealed membrane UP/DOWN/AutoDeploy switch
• Marine-grade battery wire - 17'
• Assembly hardware and
• Instruction manual

*Sold as an Individual

Specifications:

• Rope Diameter (Inches): 3/16"
• Freefall: No
• Chain - Diameter (Inches): N/A
• Vertical/Horizontal: Horizontal
• Box Dimensions: 8"H x 11"W x 14"L WT: 14.3 lbs
• UPC: 666996102083
