TACO Grand Slam 300XL Outrigger Mount for 1-1/2" Outrigger

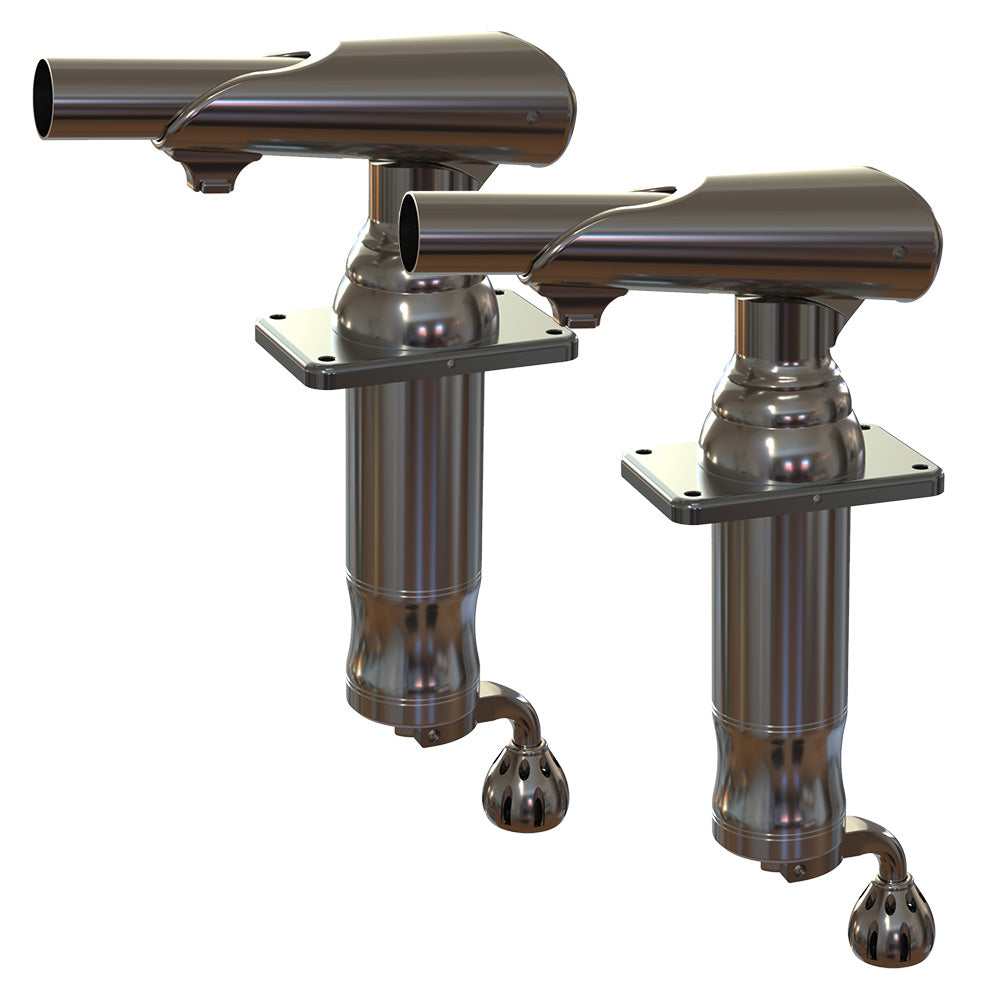

Grand Slam 300XL Outrigger Mount for 1-1/2" Outrigger

Single-Handle Operation, Now for Larger Hardtops! The Grand Slam 300XL – a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount designed for hardtops up to 4.5". Delivering enhanced safety and performance, the GS-300XL offers smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles with the ergonomic crank handle, which locks flush into the base for a sleek, secure fit. Built with an all-metal design—no plastic components—the 300XL provides a superior water seal and increased protection from the elements. The GS-300XL pairs seamlessly with TACO’s award-winning Open Water Internal & Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22', featuring an underside pin-locking connection that eliminates the need for port and starboard designations.

Features & Benefits

PIN-LOCKING ARM:

• No port or starboard designation
• Underside locking pin connection
• Arm lifts to 46.5º from the horizontal position for kite fishing and dock clearance
• Pairs with 1-1/2" DIA Outrigger Poles up to 22'
• Can be used with Outrigger Base Reducer for 1-1/8” DIA poles

HANDLE:

• Stainless-steel, ergonomic, single-hand crank handle with ball bearing
• Enables the lift and rotation of outrigger poles from the safety of the deck
• Unique, locking flip handle
• Keeps the handle knob on the bottom when lifting or rotating the outrigger
• Provides full torque control and safety of deployment at all times
• Robust, dual-detented lifting crank handle locks flush into base

MOUNT:

• Made for hardtops up to 4-1/2" thick
• Ideal for boats 25' to 40'
• Constructed from cast stainless-steel and machined aluminum for a stronger, lighter base
• Each mount weighs 15 pounds (30 pounds per pair)
• Safety detents prevent uncontrolled rotation when deploying outrigger poles
• Allows a controlled 180° rotation, if needed
• Locking head eliminates the downward creep of outrigger poles
• Equipped to handle the torque and whip generated by poles up to 22’
• Includes mounting hardware for easy installation
• Base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems
• Backing plates (BP-0300) sold separately
• 3-year limited warranty
