DISPLAY ONLY. CAMERA SOLD SEPERATELY.

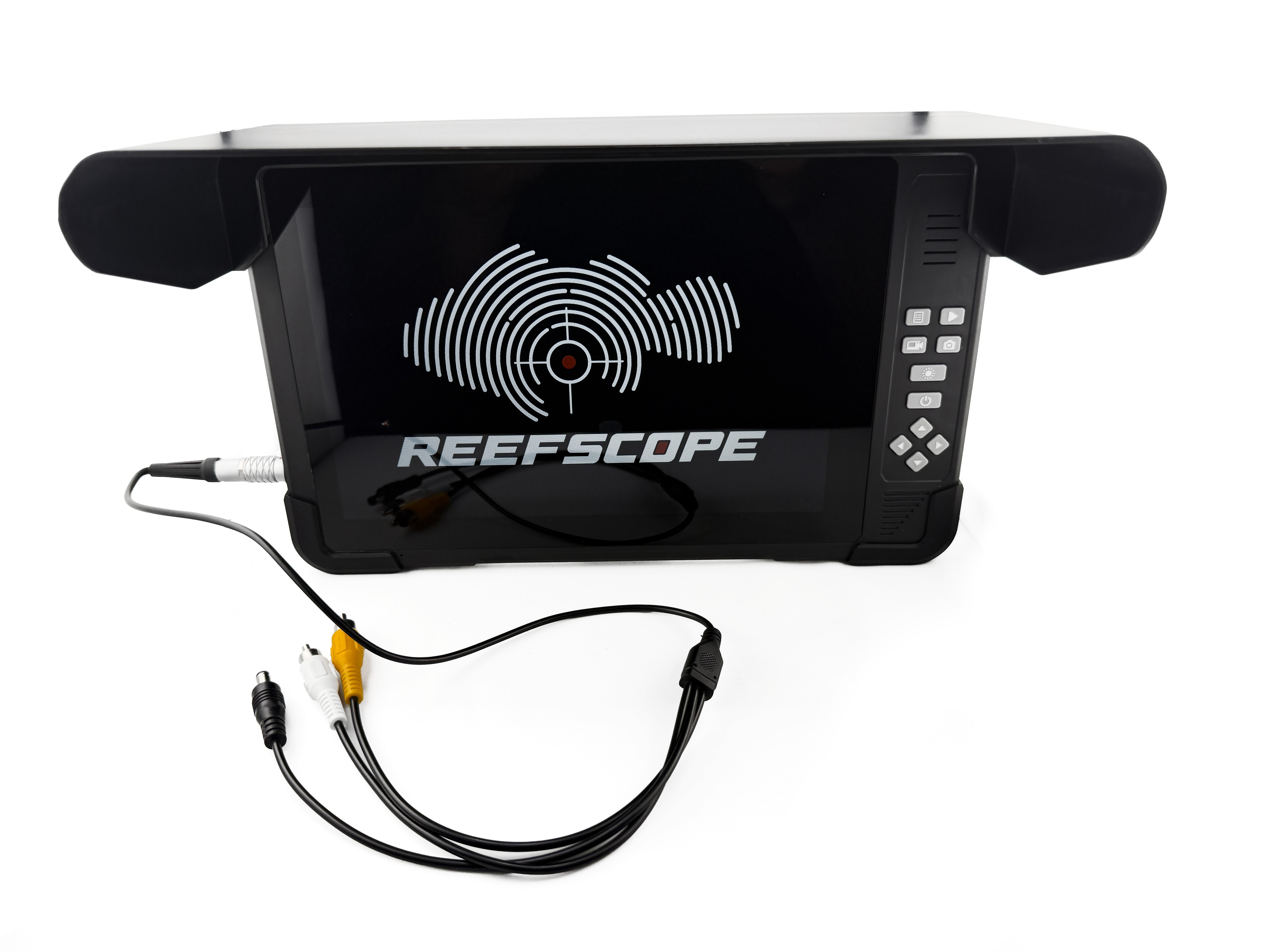

The Reefscope Sentinel 10" is a professional-grade portable IPS touchscreen monitor engineered for real-time video viewing, 4K recording, camera powering, and field inspections. Designed for compatibility with Reefscope™ underwater camera systems and any 12V AHD/TVI/CVBS camera, the Sentinel 10" offers exceptional clarity, durability, and performance for marine users, inspectors, ROV operations, technicians, and industrial professionals.

Featuring a large 10.1" IPS display, onboard DVR, HDMI output, photo capture, and long battery life, this all-in-one monitor is built for demanding outdoor environments, boat use, dockside tasks, and professional inspection operations.

Key Features

• Large 10.1" IPS full-view display (1280×800) for superior clarity and easy viewing outdoors

• Portable, rechargeable all-in-one monitor and DVR

• Directly powers Reefscope cameras or any 12V camera system with AHD/TVI/CVBS output

• Live video viewing, 4K video recording, photo capture, and playback

• HDMI video output for external monitors or recording systems

• IP65 water-resistant construction

• Replaceable high-capacity 6200mAh Li-ion battery

• Supports micro SD (TF) cards up to 256GB (card not included)

Full Technical Specifications

Display & Controls

• Screen Size: 10.1 inch

• Display Resolution: 1280 × 800 px

• Compatible Input Resolution: 1920 × 1200 px

• Display Type: IPS full-view

• Touchscreen Structure: In-cell

• Touch Method: Self-capacitance

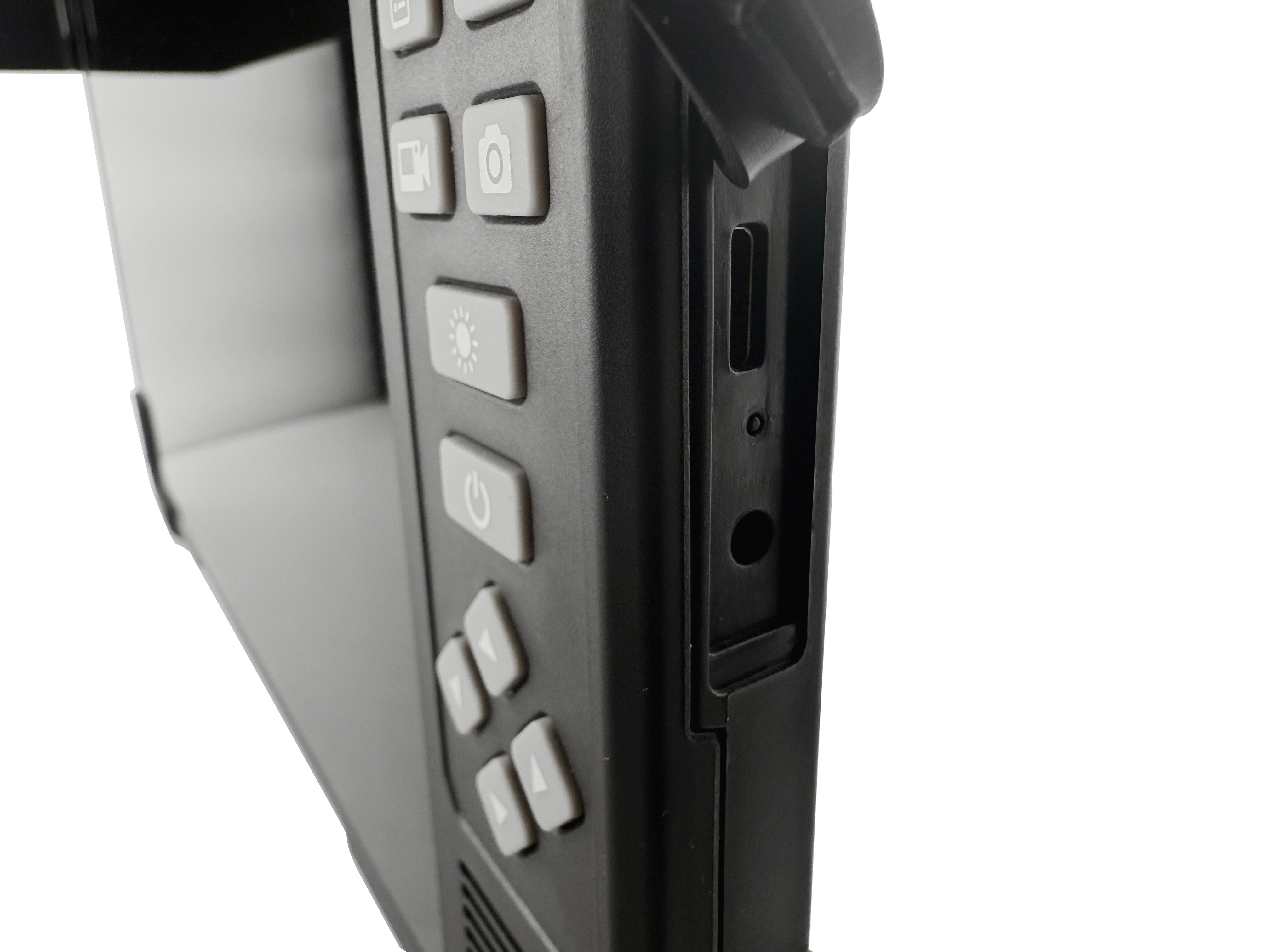

• Controls: Touchscreen + physical buttons

• Waterproof Rating: IP65 (water-resistant)

Video & Recording

• Supported Recording Resolutions:

  • 4K

  • 2K

  • 1080P

  • 720P

  • CVBS

• Supported Video Inputs:

  • AHD, TVI, CVBS

  • 4K / 2K / 1080P / 720P / 480P support

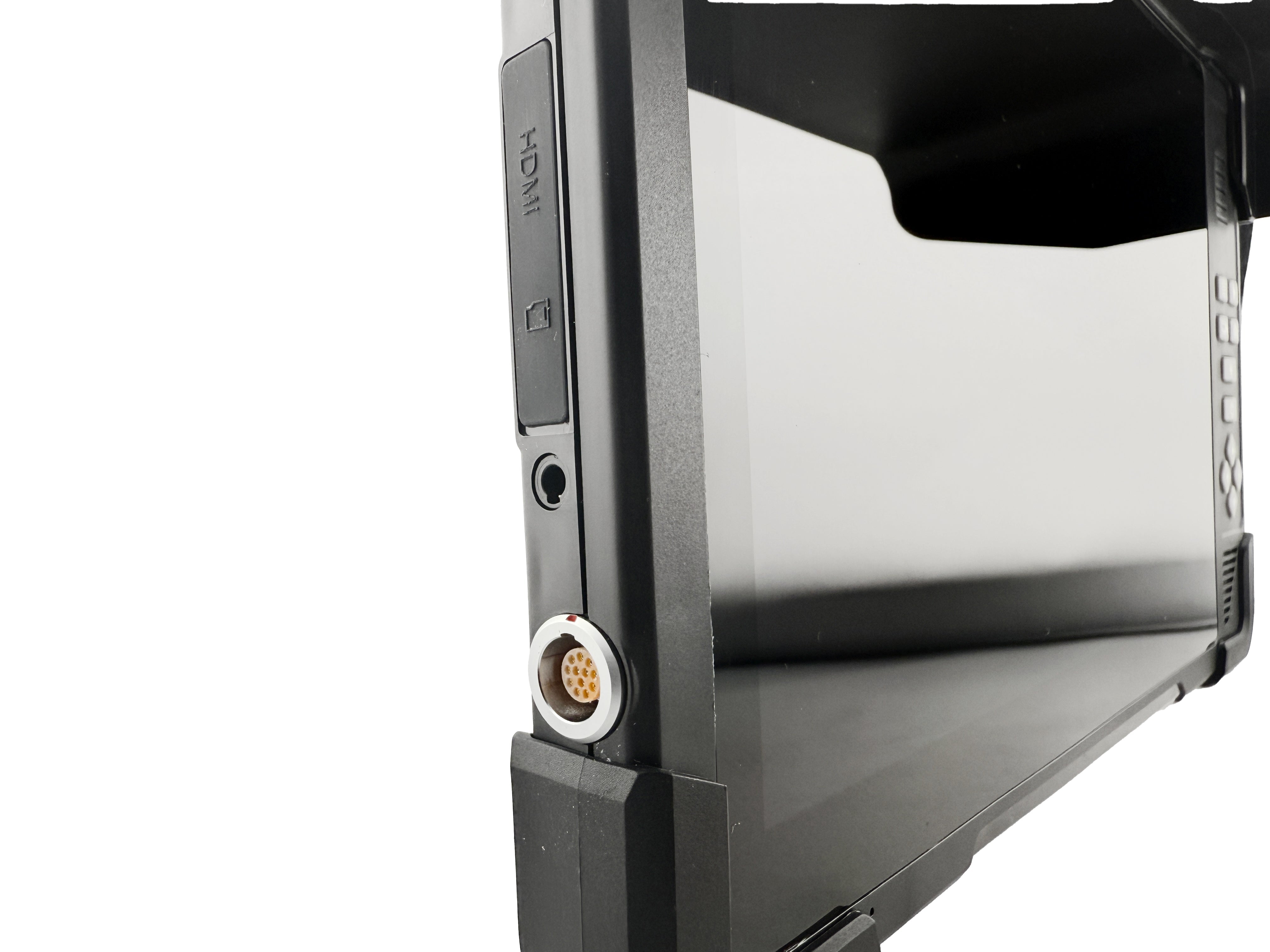

• Video Output (HDMI):

  • Up to 4K (4096 × 2160)

• Video Format: H.264 (AVI file format)

• Photo Capture: 12MP, 8MP, 5MP, 2MP

• Playback: Supported

• Synchronous audio + video compression

Power & Battery

• Battery Size: 6200mAh (48Wh), replaceable

• Stand-Alone Runtime: 10–12 hours

• Full System Runtime: 6–8 hours

• Input Power:

  • DC 12V 2A

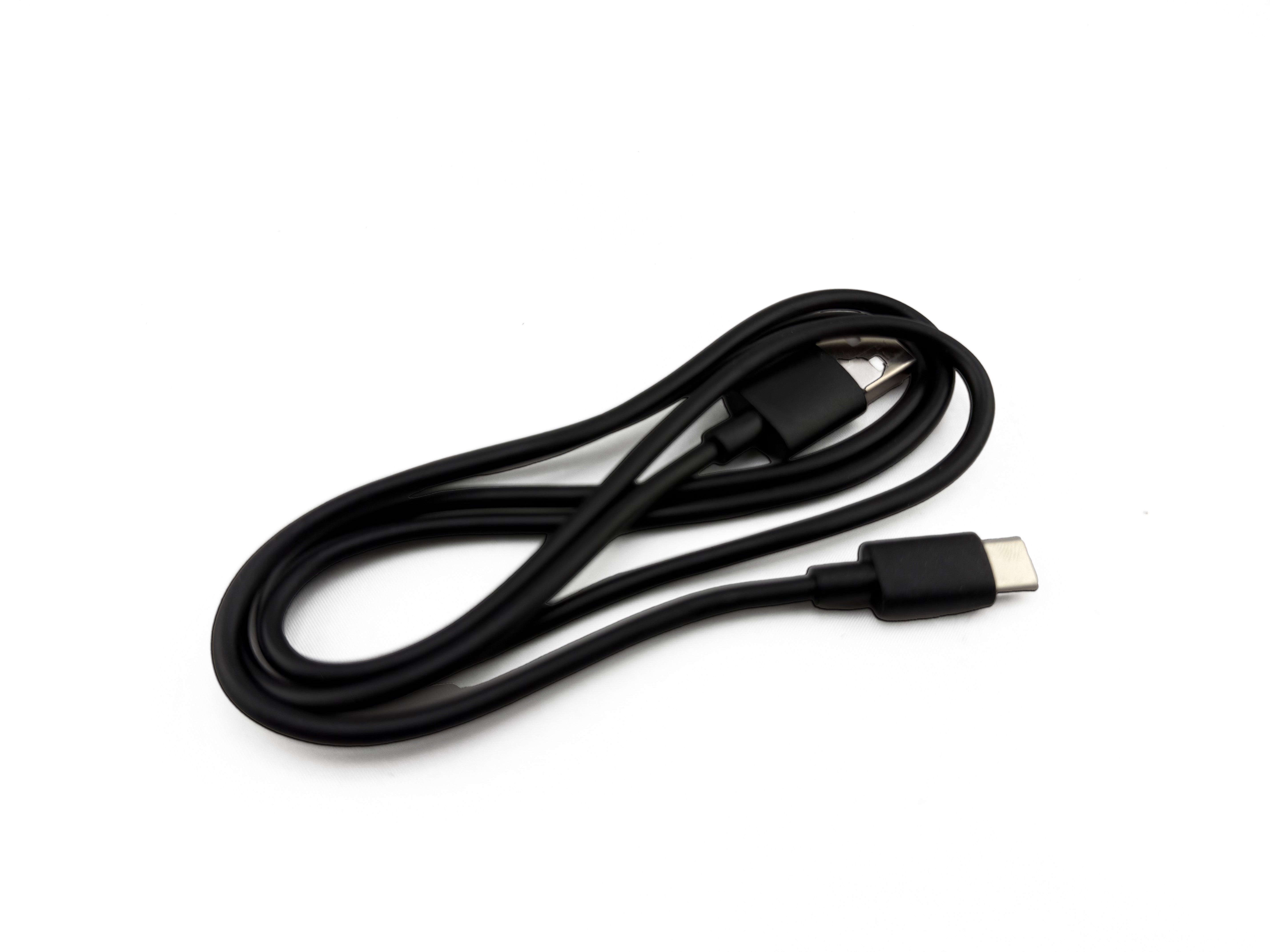

  • USB 5V

Compatibility & Connectivity

• Works with Reefscope Rover T1, Reefscope underwater cameras, and any 12V AHD/TVI/CVBS camera system

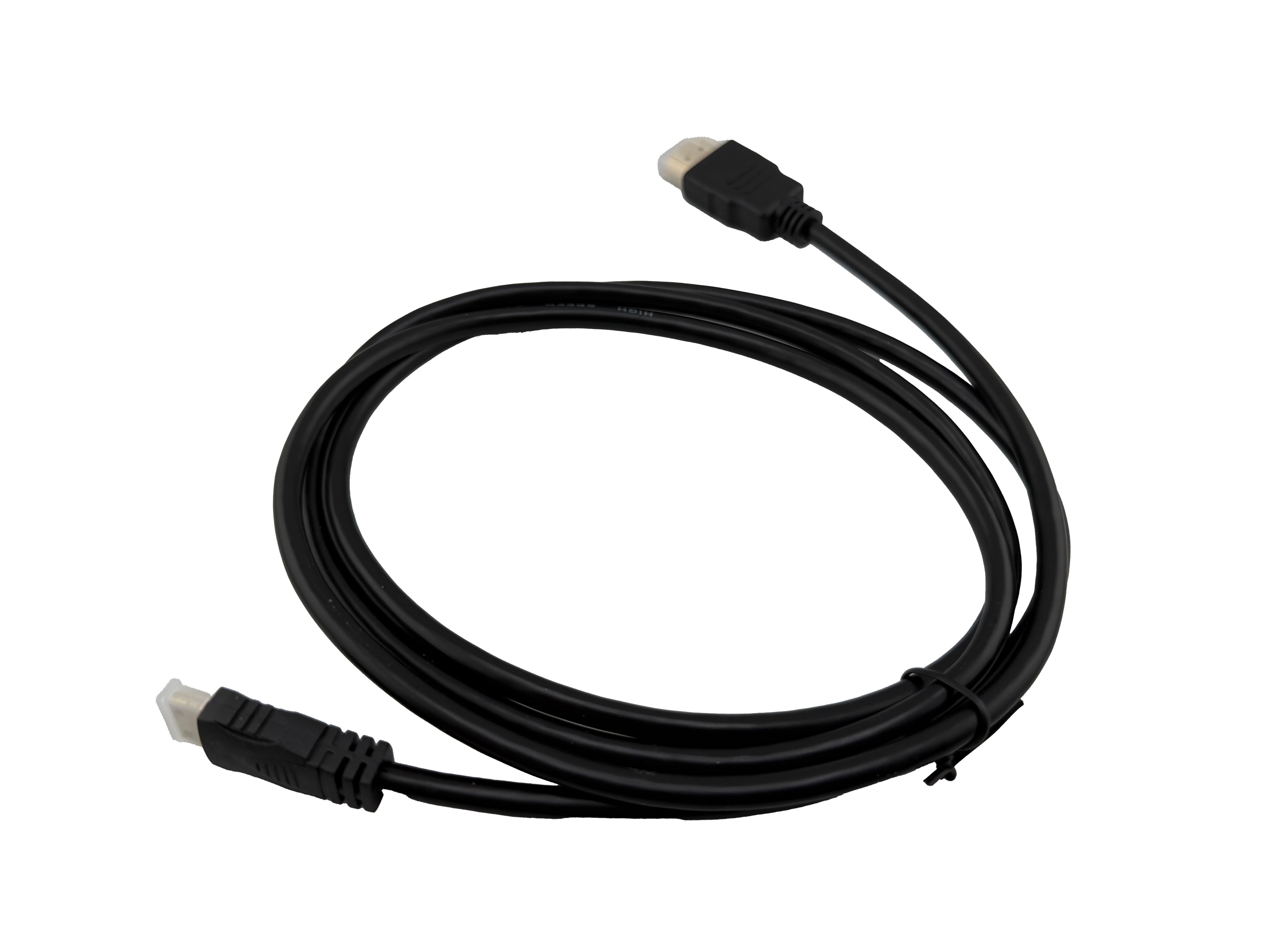

• HDMI Output: 1080P and 4K

• Storage Card: TF card 2GB–256GB (default support: 128GB)

• Multi-language support

Dimensions & Weight

• Size: 30 × 19 × 1.8 cm

• Weight: 1000g

Included Accessories

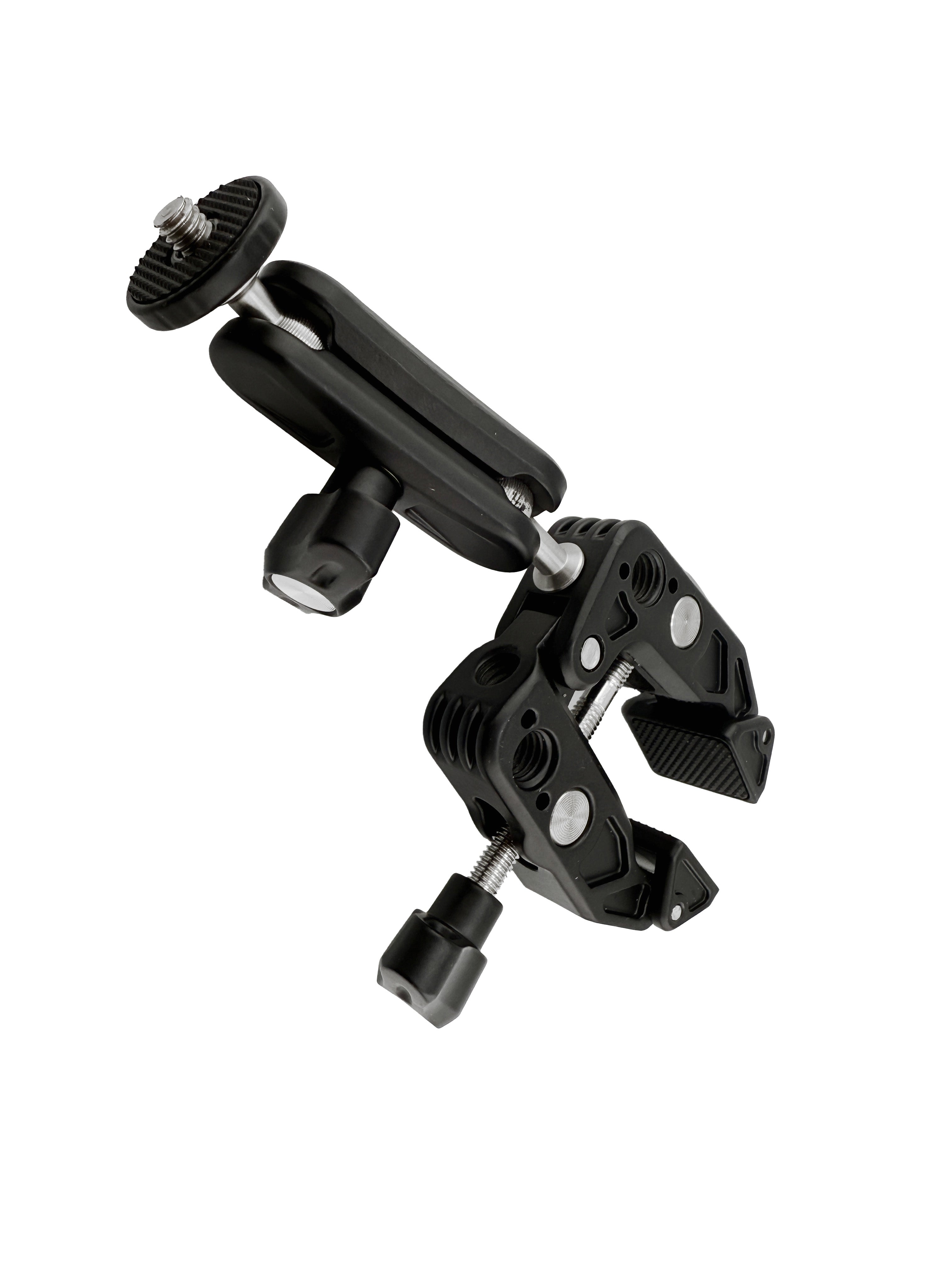

• Clamp Mount

• Power / Video Adapter

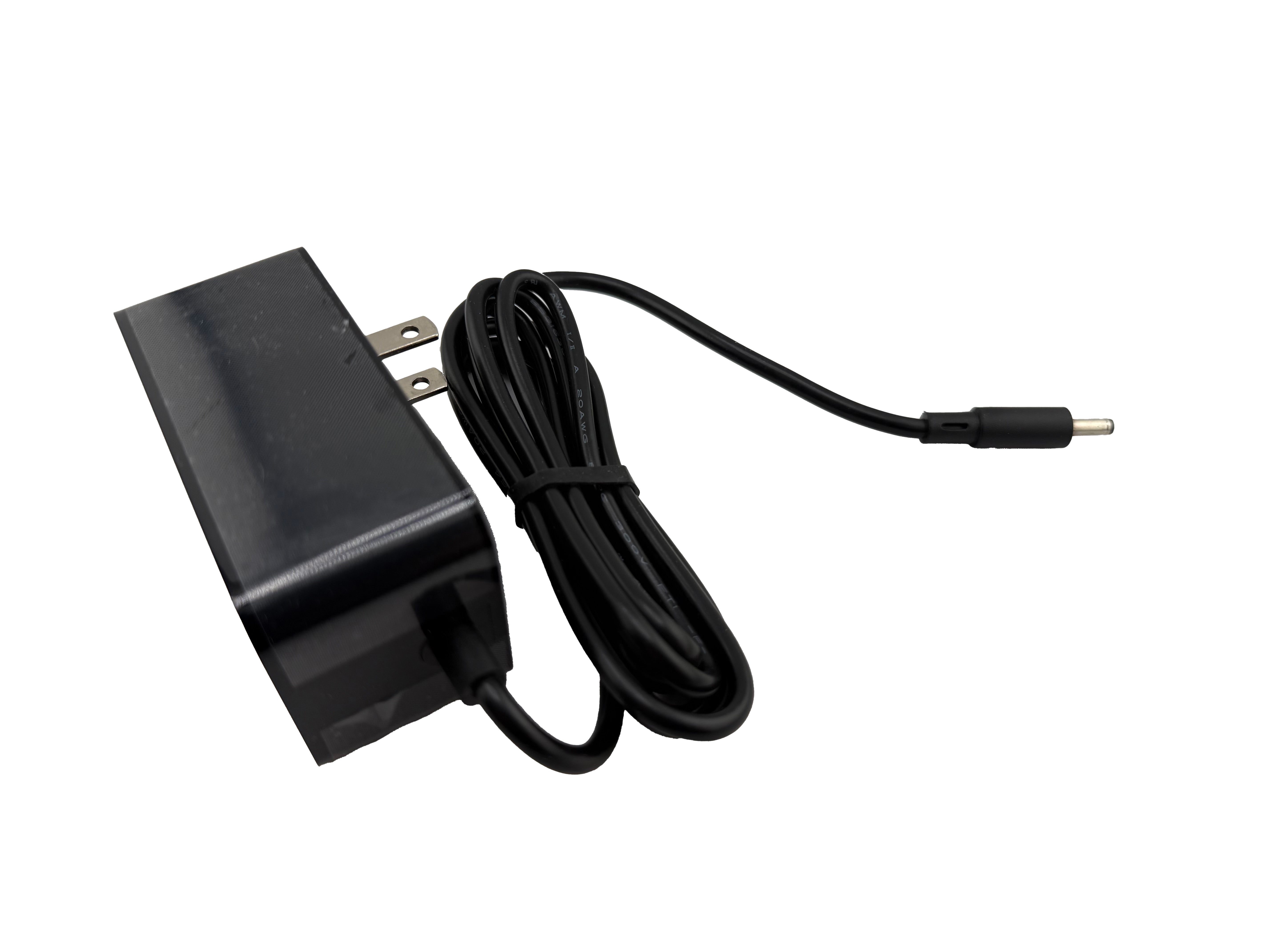

• Charger

• Shade Visor
