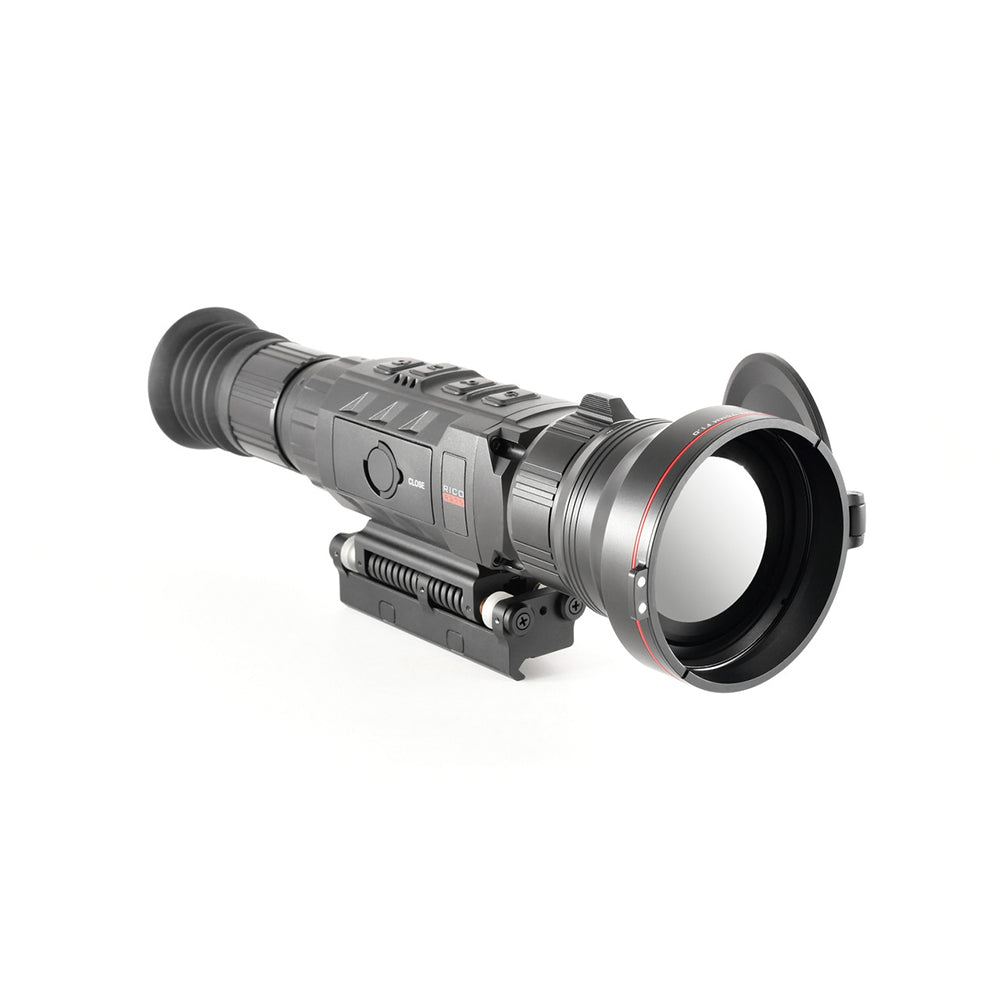

iRay RS75 - 2-16x LPVO - Thermal Rifle Scope - 3,600 Yards

Rico RS75: Advanced Thermal Imaging Rifle Scope with 3600-Yard Detection Range and High-Resolution AMOLED Display

• The RICO HD Series RS75: Revolutionizing the world of thermal imaging, setting a new standard for outdoor enthusiasts and professional hunters alike.
• Unmatched Thermal Resolution: The RICO HD Series RS75 features an industry-first 1280×1024 12μm thermal sensor, delivering ultra-clear imagery with exceptional detail.
• Advanced Display Technology: Equipped with a 1.03-inch 2560×2560 AMOLED microdisplay, the RS75 guarantees edge-to-edge clarity and superior visual performance.
• Premium Optics: The device boasts a low-distortion orthoscopic eyepiece and a 75mm f/1.0 lens, ensuring optimal focus for precise target acquisition.
• Extended Detection Range: Its powerful capabilities offer a detection range of up to 3600 yards, perfect for long-range night hunting.
• Onboard Recording: With 128 GB of built-in storage, users can easily capture and store each moment of their hunts, complete with crystal-clear audio.
• User-Friendly Design: Enjoy features such as a quick-change rechargeable battery pack, multiple reticle types and color options, and an intuitive interface for an effortless experience.
• Enhanced Accuracy: The built-in laser rangefinder and compatibility with a custom reticle generator app make precision shooting achievable even at night.
• Durability and Performance: The robust aluminum alloy housing and IP67 ingress protection ensure reliable performance in harsh conditions.
• Mobile Connectivity: Integrated WiFi and a mobile device app enable seamless connectivity and control, enhancing the overall user experience.

What are some common accessories to add to the Rico RS75?

• Extended battery packs for longer run times
• External power sources for extended use in the field
• Quick-detach Picatinny rail mounts for versatility
• Tactical sun shades to reduce glare
• Enhanced WiFi modules for faster data transfer
• Tactical carrying cases for secure transport
• Extra lens cloths for maintaining optical clarity

Rico RS75 Features and Specs

The RICO HD Series RS75 is a state-of-the-art thermal weapon sight that combines unmatched resolution with advanced features to enhance night hunting. This high-performance device boasts an industry-first 1280×1024 12μm sensor and a 2560×2560 AMOLED display, providing unparalleled image clarity and a wide field of view. The precision-engineered orthoscopic eyepiece ensures minimal distortion and comfortable eye relief, while the 75mm f/1.0 lens offers an impressive detection range of up to 3600 yards. The RS75 is equipped with a suite of user-friendly features including onboard video recording, WiFi compatibility, a built-in digital compass, and multiple reticle options, making it a versatile tool for hunters.

FEATURES

• 12μm high-performance thermal detector
• High image quality
• Aluminum alloy housing
• Maximum detection range 3600 yards
• Quick-change rechargeable battery pack
• HD 2560×2560 AMOLED display
• High frame frequency: 30Hz
• Multiple zero profiles and ranges
• Digital Zoom: ×2/×4/×8/×16
• Built-in 128 GB storage to support image capture and video recording
• Built-in WiFi module
• Mobile device App compatible
• Built-in digital compass and gravity sensor
• Multiple reticle types and color options
• Ultra-Clear mode for advanced image detail
• Picture in Picture (PIP)
• User-friendly interface
• Pixel calibration functions

TECH SPECS

Optics

• Optical Magnification: 2X
• Digital Magnification: 16X
• Objective Lens Material: Germanium
• Horizontal Angular Field of View: 11.7°
• Vertical Angular Field of View: 9.4°
• Detection Range: 3600 Yards
• Objective Focal Length: 75mm
• Objective Diameter: 75mm
• Objective F#: f/1.0
• Focusing Mechanism: Manual Focus
• Exit Pupil: 14mm
• Eye Relief: 60mm
• Eyepiece Focal Length: 27mm
• Display Type: AMOLED
• Diopter Range: -3 - +3
• Display Resolution: 2560×2560

Features & Performance

• Reticle: 7 (2 Dynamic, 5 Static)
• Connector Type: USB-C
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
• User-Updatable Firmware: Yes
• Mobile App: Yes
• Storage Capacity: 128GB
• Connector Output: Power/Data
• Picture-in-Picture: Yes
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Rangefinder: ILR-1000 LRF (Included)
• Run Time: 4+, Each Battery
• Power Source: IBP-1 Battery Pack X 2, 4+ Hours Each
• Wifi: Yes
• Onboard Recording: Video and Image
• Image Capture: Yes
• Video Output: Yes
• Startup Time: Under 10 Seconds
• External Power Source: USB-C
• Warranty: 5 Years
• Compatible With: ILR-1000

Environmental Specifications

• Operating Temperature Range: -4°F~122°F
• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
• Ingress Protection: IP67

Sensor Specifications

• Device Technology: Thermal Imaging
• Sensor Type: InfiRay MICRO II

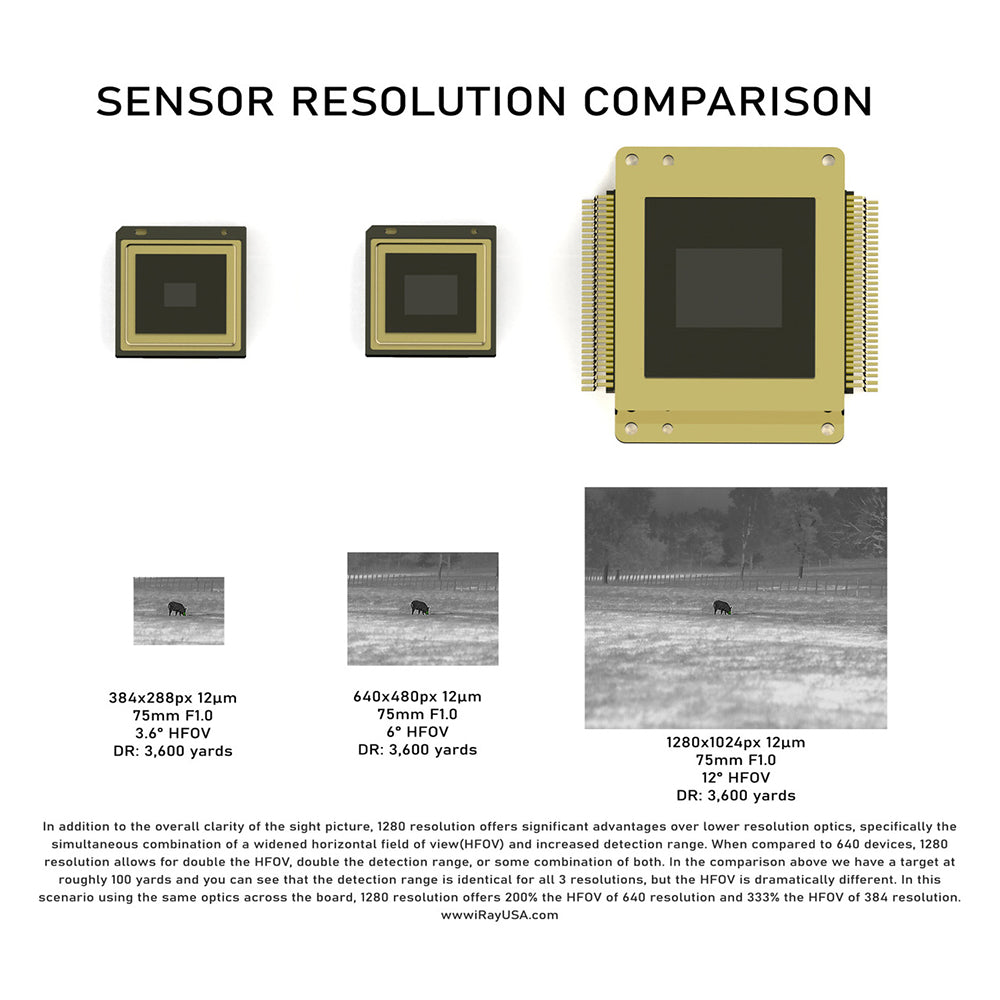

• Sensor Resolution: 1280×1024
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Spectral Response: 8-12 Microns
• Sensor Frame Rate: 30hz
• Sensor Pixel Size: 12 micron
• Thermal Sensitivity: <25 m

Physical

• Mounting Interface: Picatinny STD-1913 rail
• Housing Material: Aluminum
• Length: 12.55"
• Weight: 44.9 Oz
• Height: 3.34"
• Width: 3.93"

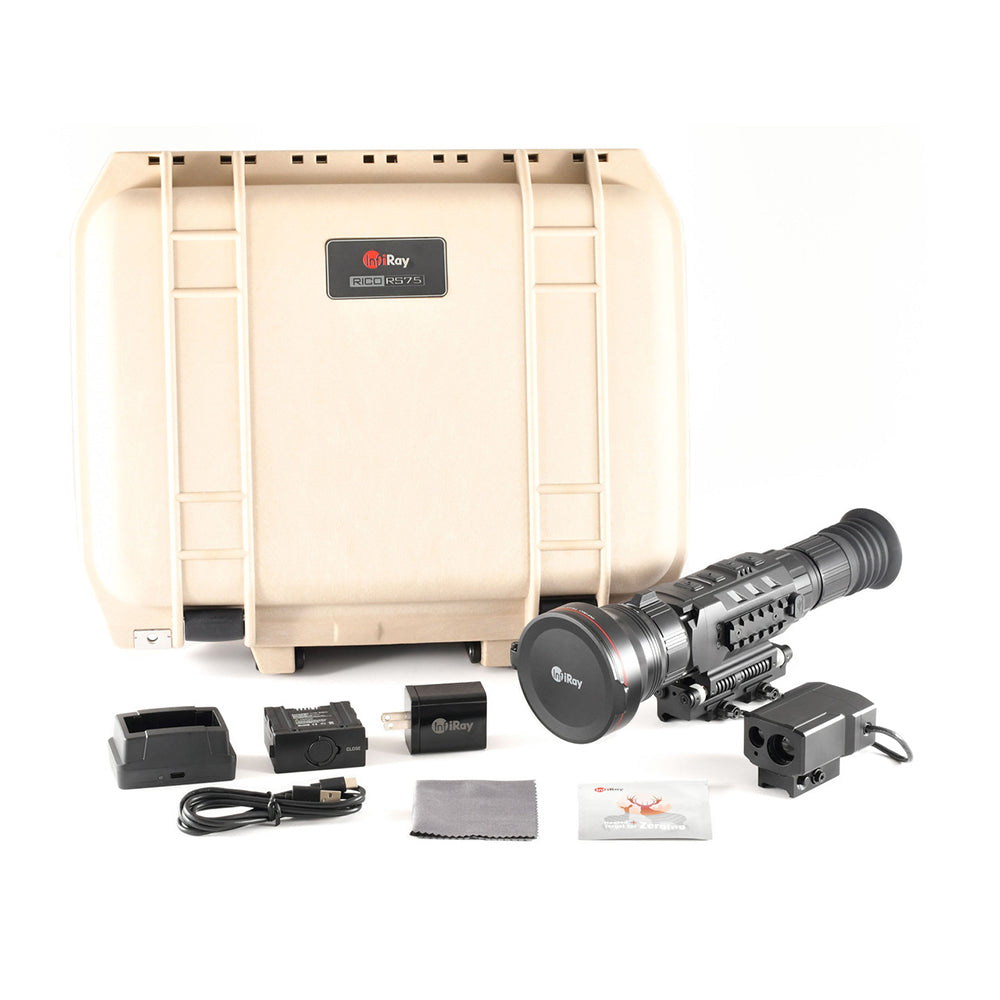

What's in the box of the Rico RS75?

• (1) RICO HD Series RS75 Rifle Scope
• (1) ILR-1000 Laser Rangefinder Module
• (1) USB-C to Analog RCA/USB Cable 36”

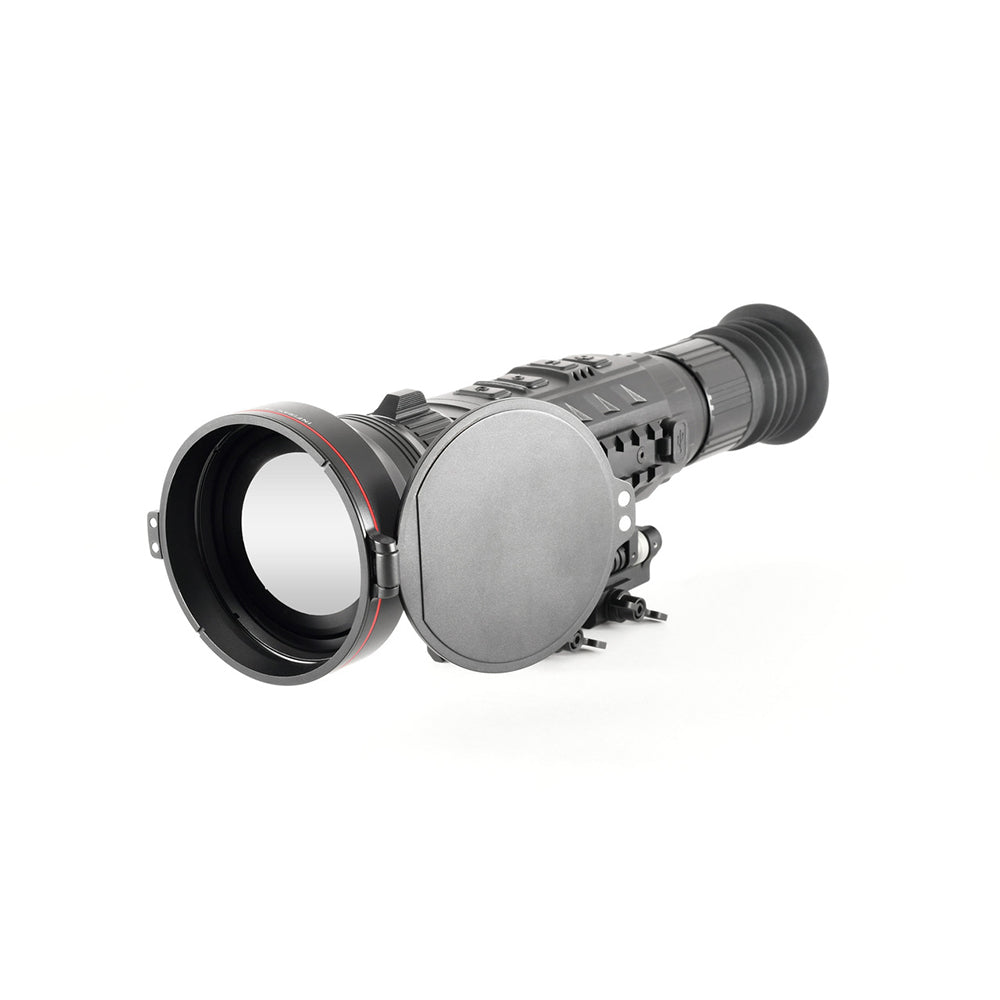

• (1) Objective Lens Cap for RICO RS75
• (1) Shock Reduction Picatinny Mount for RICO RS75
• (1) Standard Rubber Eyeguard for RICO RS75
• (1) IBP-1 Battery Pack
• (1) IBC-1 Battery Charger for IBP-1 Battery
• (1) USB Power Adapter
• (1)  Set of M5 Screws for Shock Reduction Picatinny Mount
• (1) Spanner/T15 Tool
• (1) Hard Case
• (1) Lens Cloth
• (1) User Manual

Rico RS75 FAQs

What is the detection range of the Rico RS75?

The Rico RS75 has an impressive maximum detection range of 3,600 yards, allowing for superior performance in various hunting and night-time scenarios.

Does the Rico RS75 support video recording?

Yes, the Rico RS75 features built-in video recording capabilities and comes with 128 GB of onboard storage to capture images and videos during your hunts.

How long does the battery last on the Rico RS75?

The Rico RS75 uses the IBP-1 Battery Pack, with each battery providing a runtime of over 4 hours. The package includes two battery packs, ensuring extended usage.

What type of display does the Rico RS75 use?

The Rico RS75 is equipped with a 1.03" 2560x2560 AMOLED display, providing ultra-high resolution and edge-to-edge clarity for an exceptional viewing experience.

Is the Rico RS75 compatible with mobile apps?

Yes, the Rico RS75 is mobile device app compatible, allowing for additional convenience and functionality through your smartphone.

What reticle options are available with the Rico RS75?

The Rico RS75 offers multiple reticle types and color options, boasting 7 reticles in total, including 2 dynamic and 5 static options to suit different preferences and scenarios.
