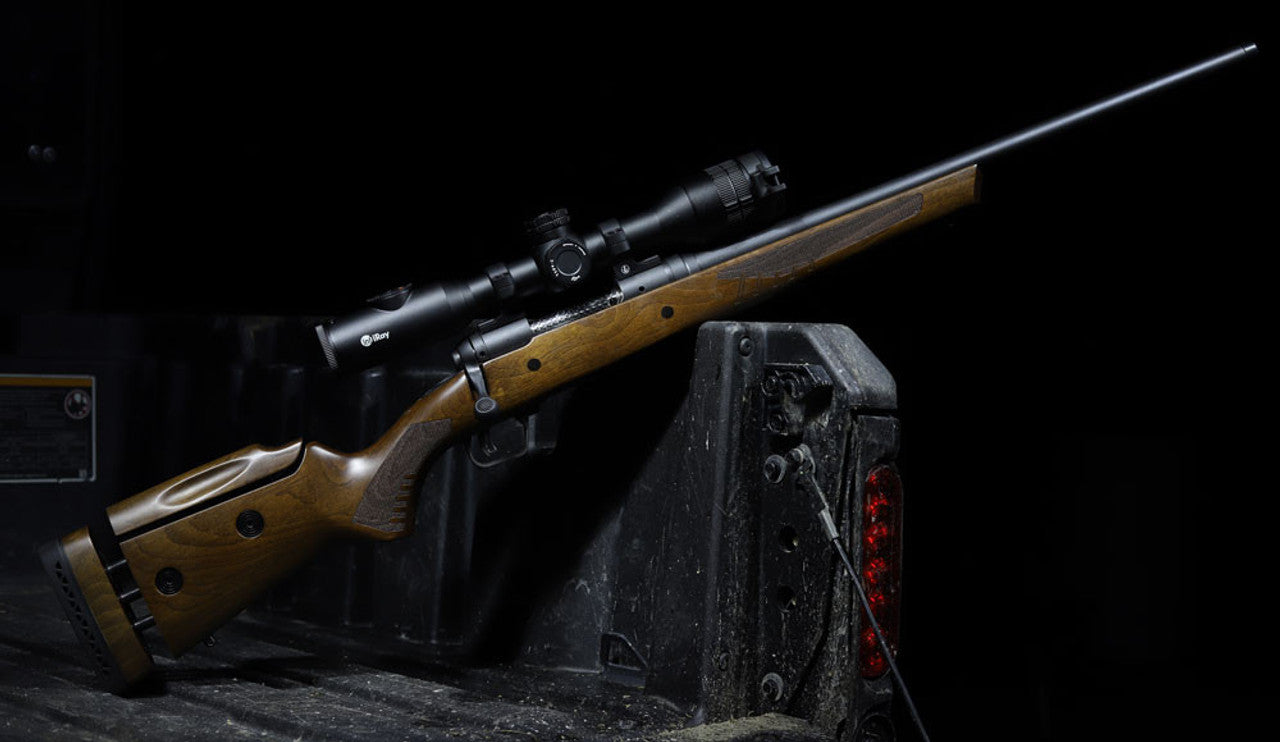

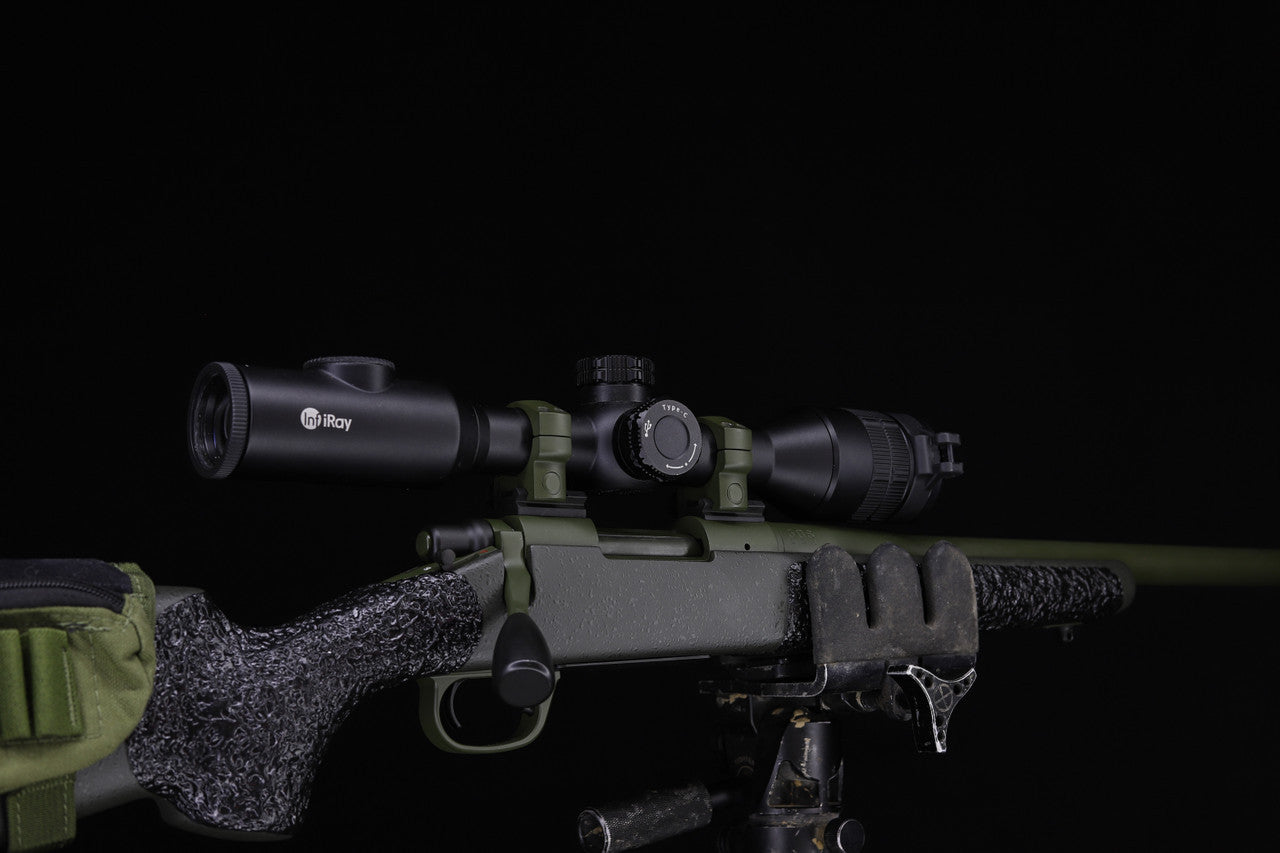

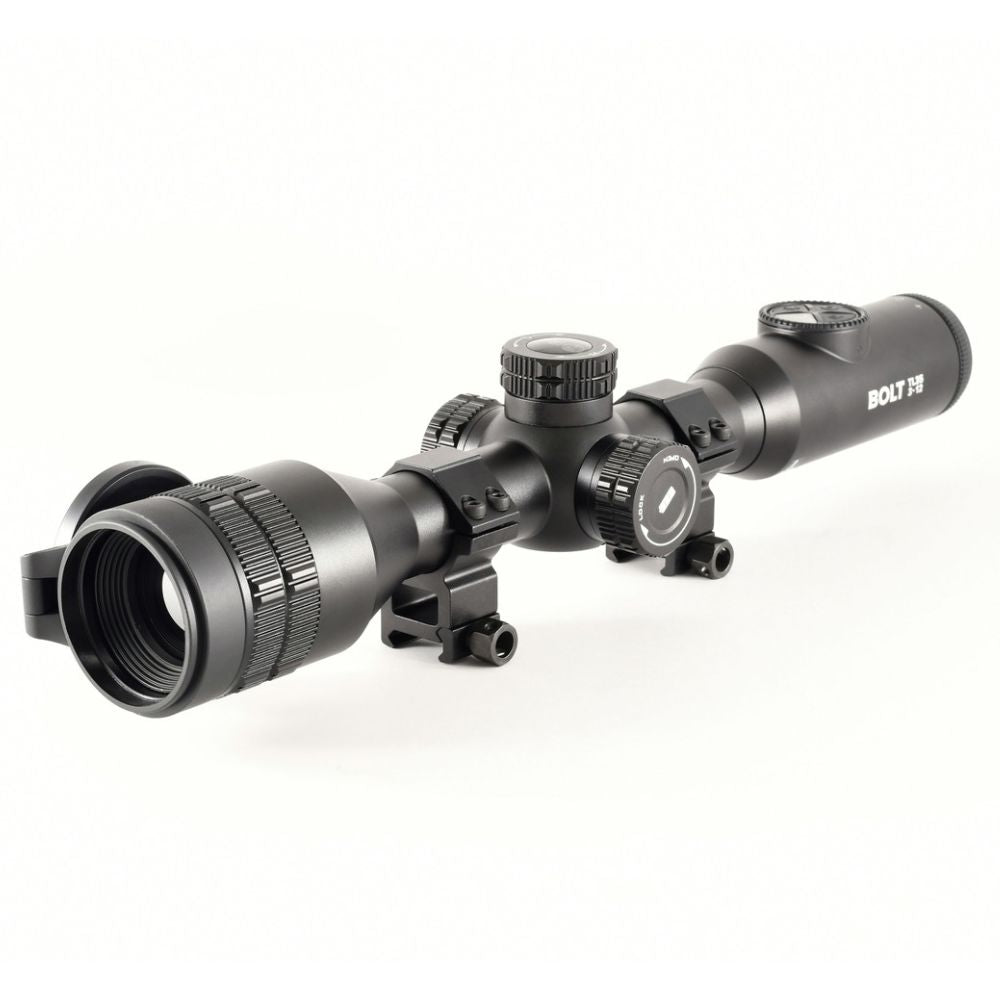

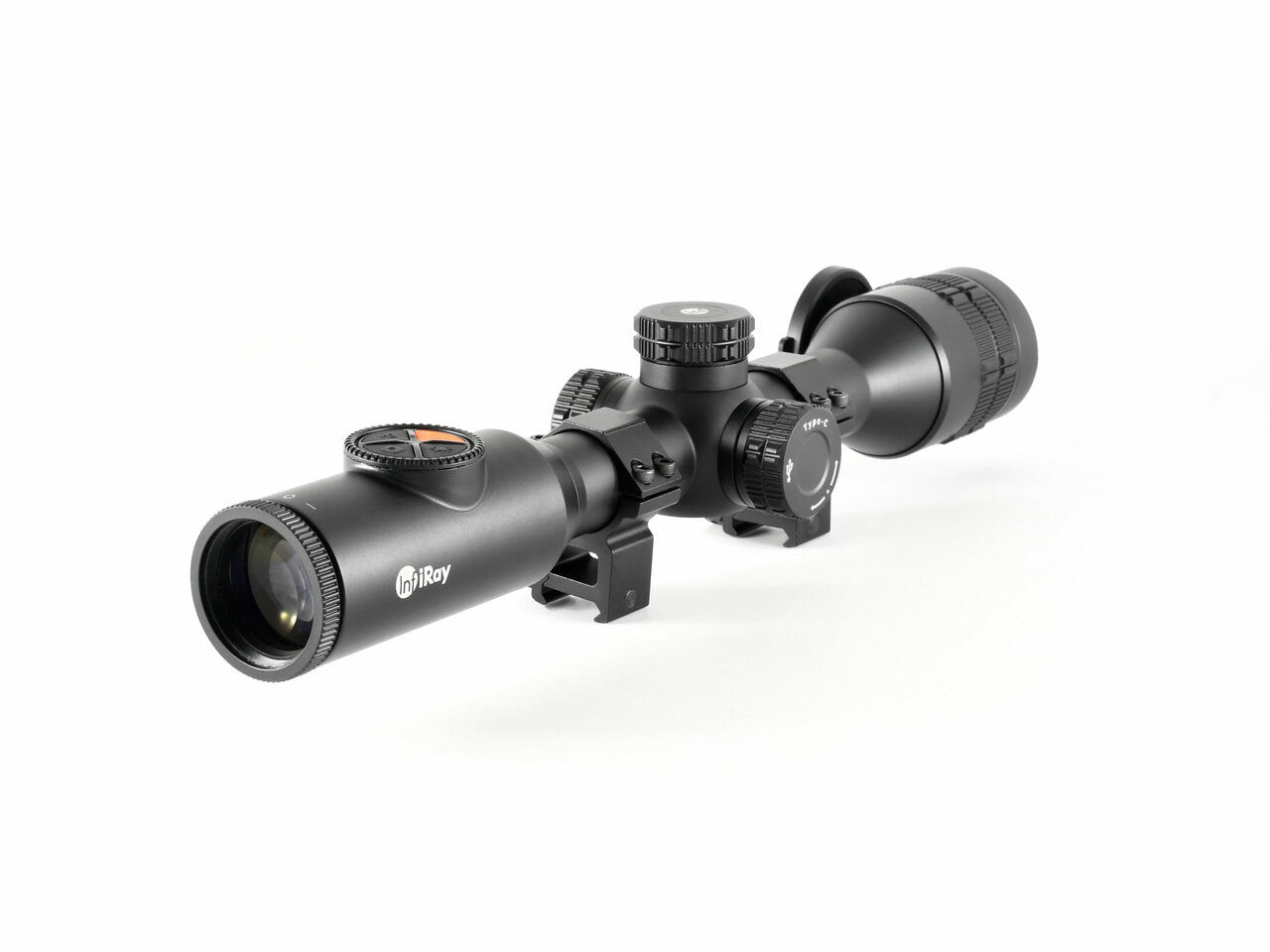

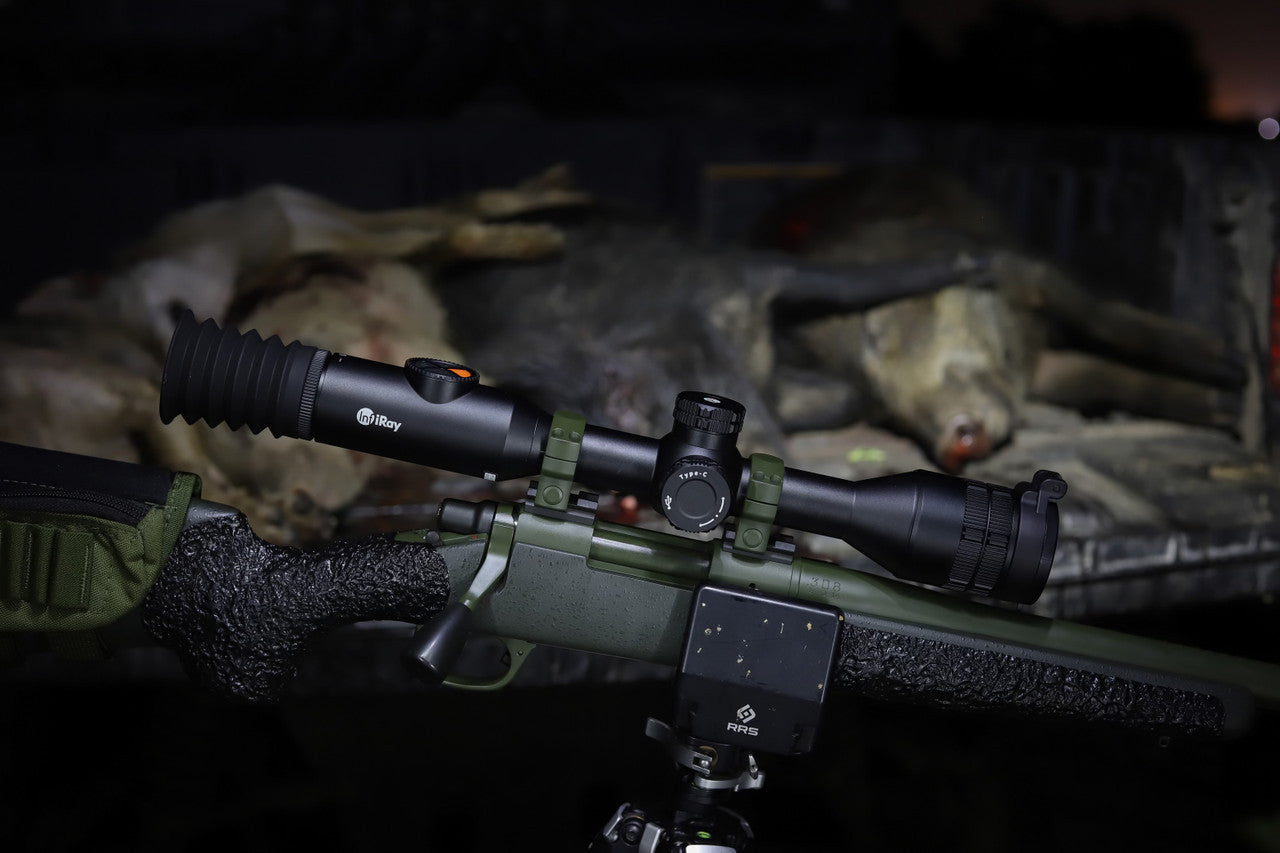

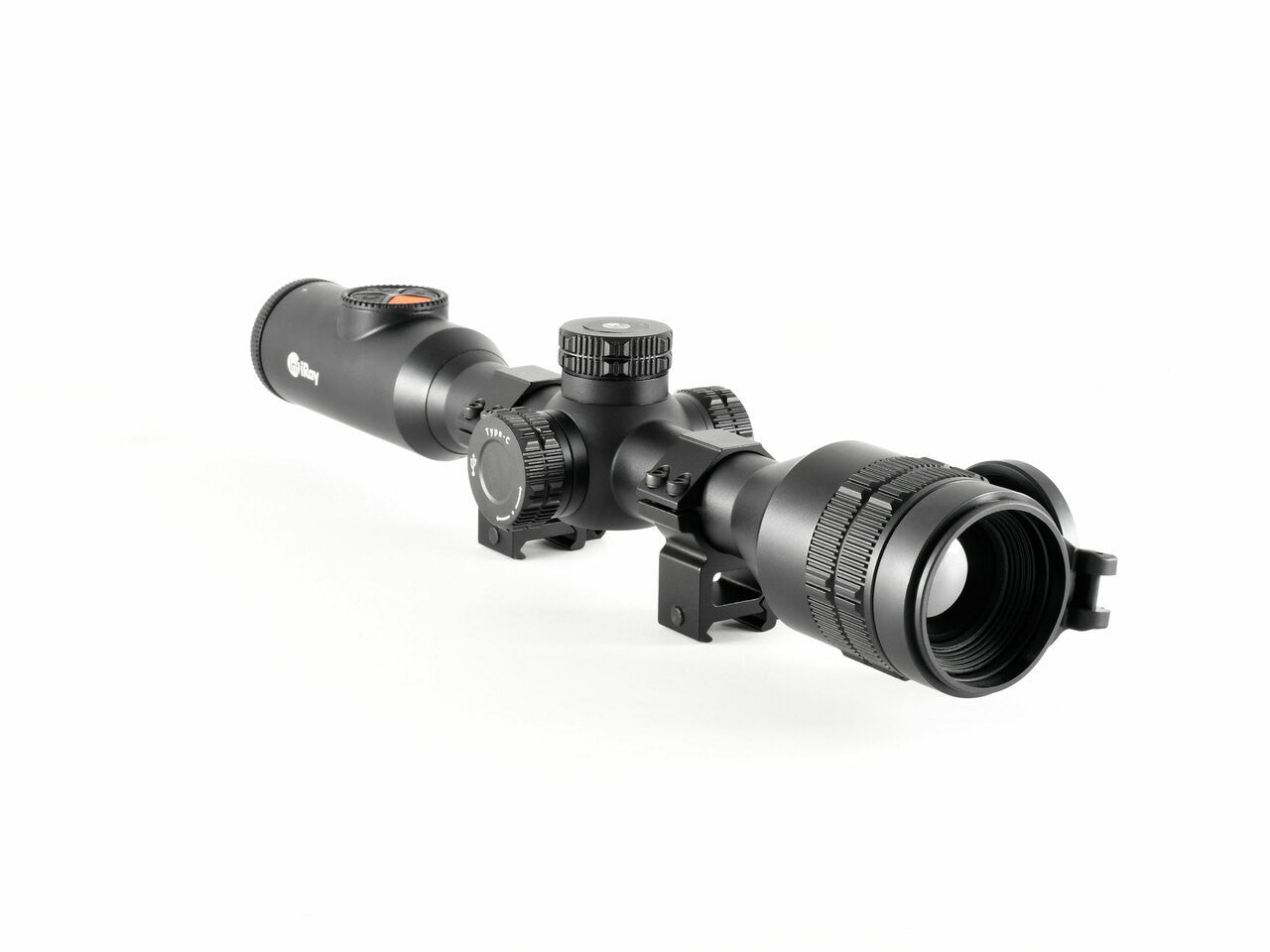

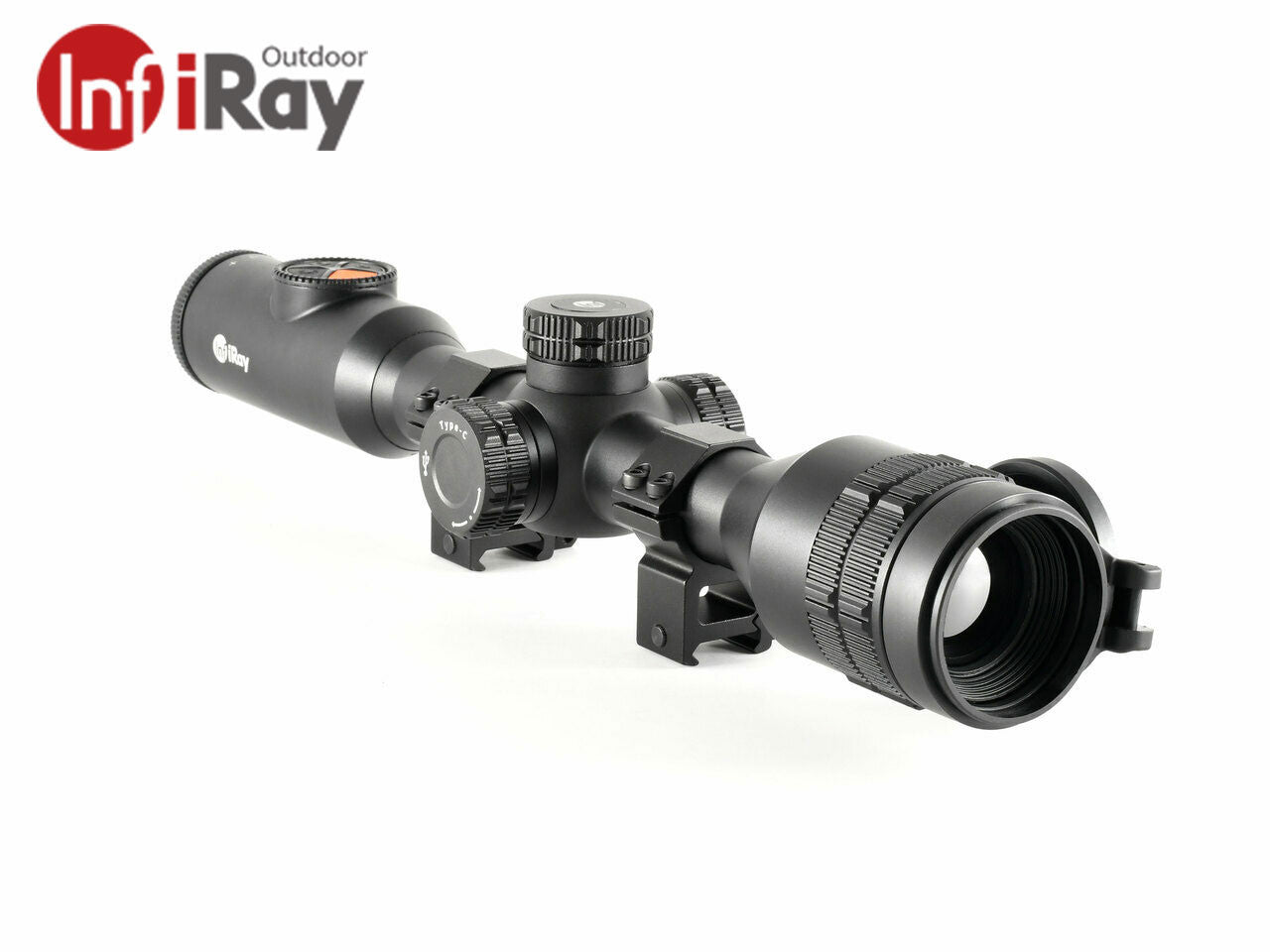

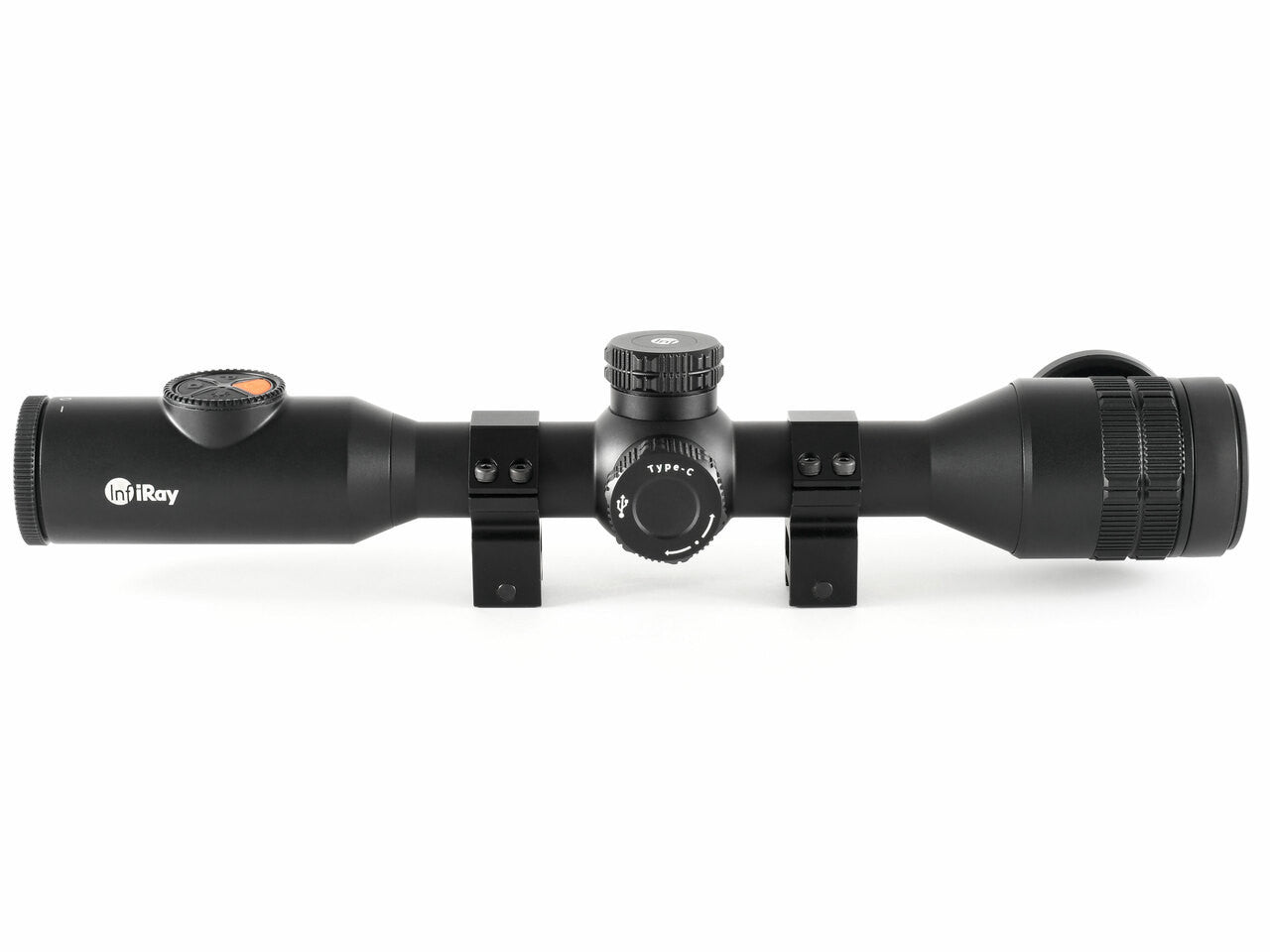

iRay Bolt TL35 V2 - 3-12 LPVO - Thermal Rifle Scope

iRay Bolt TL35 V2 Thermal Scope: Unmatched Precision with State-of-the-Art Thermal Imaging

• The InfiRay iRay Bolt TL35 V2 is a premium thermal imaging scope designed for the most demanding outdoor and hunting enthusiasts.
• Top-tier thermal sensitivity of less than 50mk, thanks to the InfiRay MICRO II sensor, ensuring you get crisp, clear images regardless of the environmental conditions.
• Features an optimal 3X optical magnification and a manual focus, allowing users to zoom in on distant targets with ease and precision.
• A detection range of 1750 yards means users can spot heat signatures from afar, a crucial advantage in tracking wildlife or assessing surroundings.
• 16GB of storage expands its utility, enabling users to save up to 20,000 images or 24 hours of video, ideal for research, surveillance, or reliving moments of glory.
• WiFi connectivity supports up to 4 devices simultaneously, perfect for team coordination or sharing real-time thermal images with companions.
• Designed to be durable and weather-resistant (IP67), the iRay Bolt TL35 V2 is built to withstand the elements, making it a reliable companion in any environment.

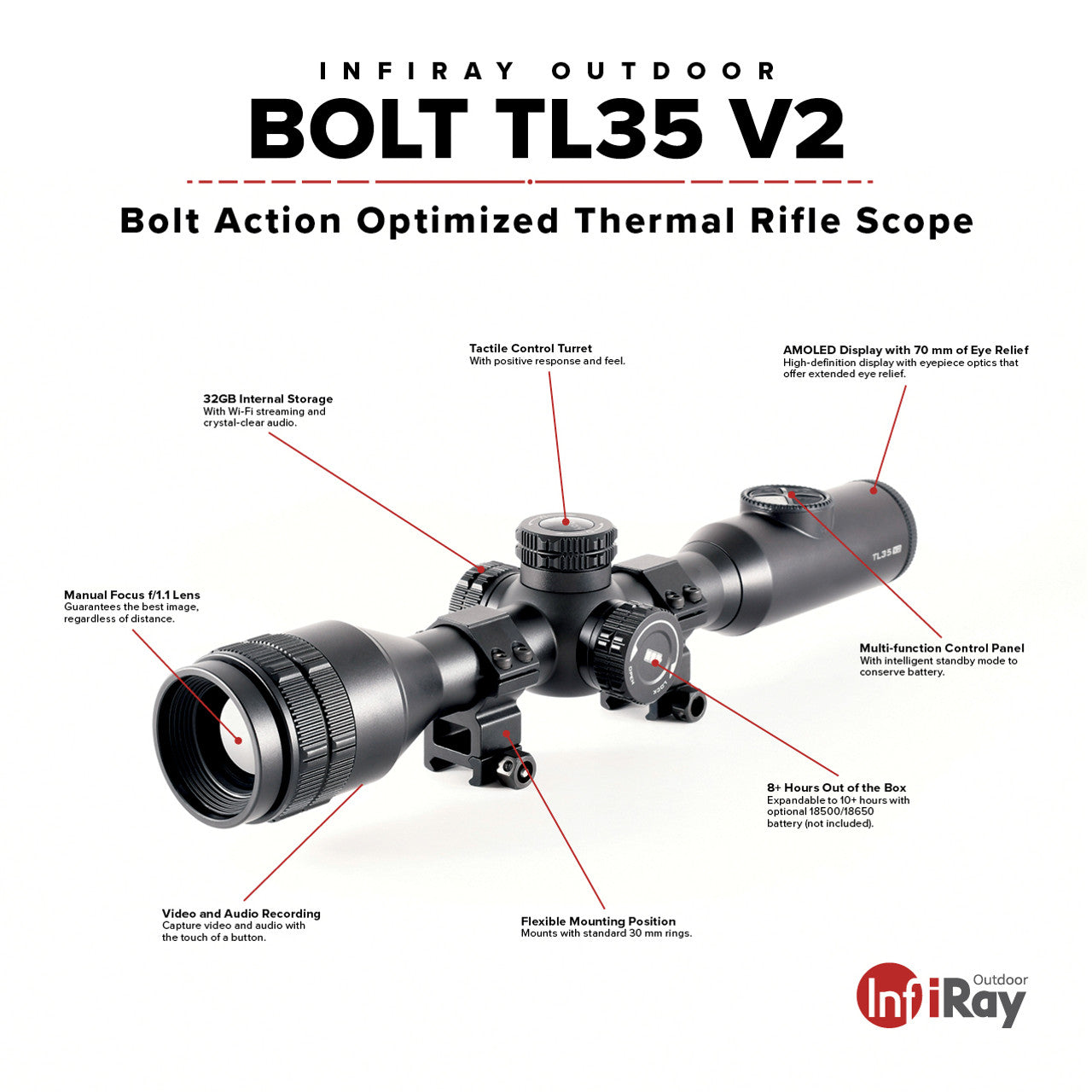

iRay Bolt TL35 Features

• Memory of 16GB capable of storing 20,000 images or 24 hours of video
• WiFi mode allowing 4 simultaneous connections for real-time thermal image view
• Germanium made objective lens with a focal length of 35mm and F# of 1.1
• Optical magnification of 3X with a detection range of 1750 yards
• AMOLED display with a resolution of 1024×768
• Manual focus with an eye relief of 70mm
• Digital magnification stepped at 4X
• Comes with a Bluetooth ILR-1200-1 LRF (Optional) rangefinder
• Onboard recording and image capture capabilities
• Equipped with mobile app and WiFi
• Features analog RS-170/NTSC video output
• User-updatable firmware with one-shot zero feature
• Stand-by mode with a storage capacity of 32GB
• Dual power supply for a run time of 8+ hours
• Startup time of under 10 seconds
• Environmentally friendly with an ingress protection of IP67
• Accommodates 30MM Rings (included) mounting interface
• T-6061 Aluminum housing material weighing in at 32.87
• High sensor resolution of 384×288 with a pixel size of 12μm
• Thermal sensitivity of less than 50mk
• Non-uniformity correction (NUC) - manual, automatic, semi-automatic
• Uses device technology for thermal imaging.

What's in the box of the iRay Bolt TL35?

• (1) iRay Bolt TL35 Thermal Imaging device
• (2) 30MM Rings for mounting
• (1) USB-C Cable for Power and Data connection
• (1) User Manual
• (1) Warranty Card valid for 5 years

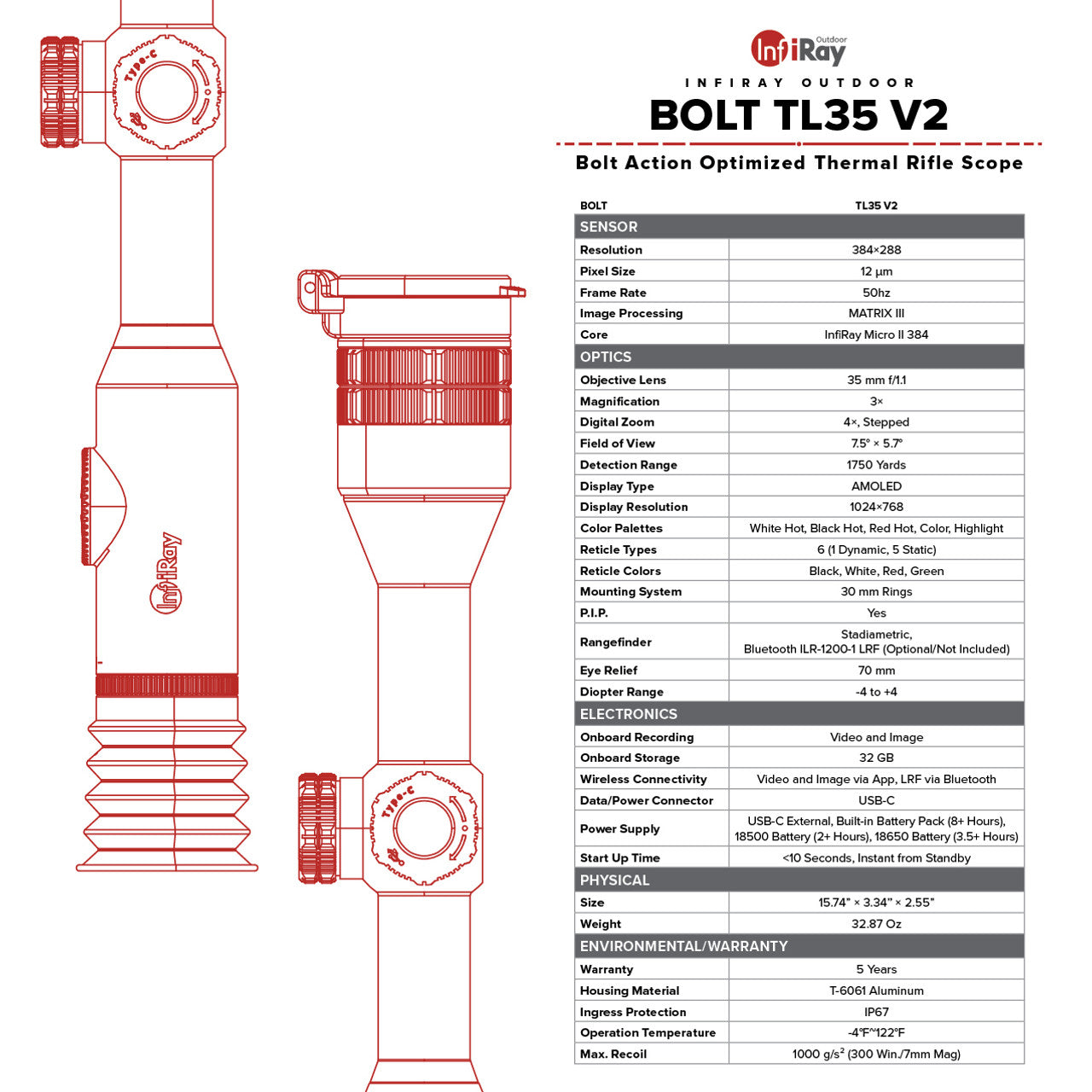

iRay Bolt TL35 Specifications

• Sensor Resolution: 384×288
• Sensor Pixel Size: 12μm
• Sensor Frame Rate: 50hz
• Sensor Type: InfiRay MICRO II
• Thermal Sensitivity: <50mk
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Spectral Response: 8-12 Microns
• Device Technology: Thermal Imaging
• Objective Lens Material: Germanium
• Objective Focal Length: 35mm
• Objective F#: 1.1
• Optical Magnification: 3X
• Detection Range: 1750 Yards
• Display Type: AMOLED
• Display Resolution: 1024×768
• Focusing Mechanism: Manual Focus
• Eye Relief: 70mm
• Digital Magnification: 4X, stepped
• Diopter Range: -4 - +4
• Vertical Angular Field of View: 5.7°
• Horizontal Angular Field of View: 7.5°
• Objective Diameter: 35mm
• Rangefinder: Bluetooth ILR-1200-1 LRF (Optional)
• Onboard Recording: Yes
• Warranty: 5 Years
• Picture-in-Picture: Yes
• Reticle: 6 (1 Dynamic, 5 Static)
• Image Capture: Yes
• Mobile App: Yes
• Wifi: Yes
• Video Output: Analog RS-170/NTSC
• Connector Output: Power/Data
• Connector Type: USB-C
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
• User-Updatable Firmware: Yes
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Storage Capacity: 32GB
• Power Source: Dual Power Supply
• Run Time: 8+
• External Power Source: USB-C or 18500/18650
• Startup Time: Under 10 Seconds
• Ingress Protection: IP67
• Operating Temperature Range: -4°F~122°F
• Length: 15.74
• Height: 2.55
• Width: 3.34
• Mounting Interface: 30MM Rings (included)
• Housing Material: T-6061 Aluminum
• Weight: 32.87

iRay Bolt TL35 FAQs

What is the storage capacity of the iRay TL35 Bolt?

The iRay Bolt TL35 comes with a storage capacity of 32GB, enough to store 20,000 images or 24 hours of video.

How does the WiFi mode work on the iRay TL35 Bolt?

The WiFi mode on the iRay Bolt TL35 allows for up to 4 connections simultaneously. Multiple viewers can see the BOLT's thermal image in real-time.

What is the startup time for the iRay Bolt 35?

The iRay Bolt TL35 boasts a quick startup time, powering up in under 10 seconds.

Is the iRay Bolt 35 weather-resistant?

Yes, the iRay Bolt TL35 has an ingress protection rating of IP67, making it resistant to both dust and water.

Can the iRay Bolt TL35 firmware be updated by the user?

Yes, the iRay Bolt TL35 features user-updatable firmware which allows you to keep your device up-to-date with the latest features and enhancements.

What is the detectable range of the iRay Bolt TL35?

The iRay Bolt TL35 has a detection range of 1750 yards, offering you a wide field of view.
