iRay Alpha - 3-8 LPVO - Thermal Rifle Scope - 2,400 Yards

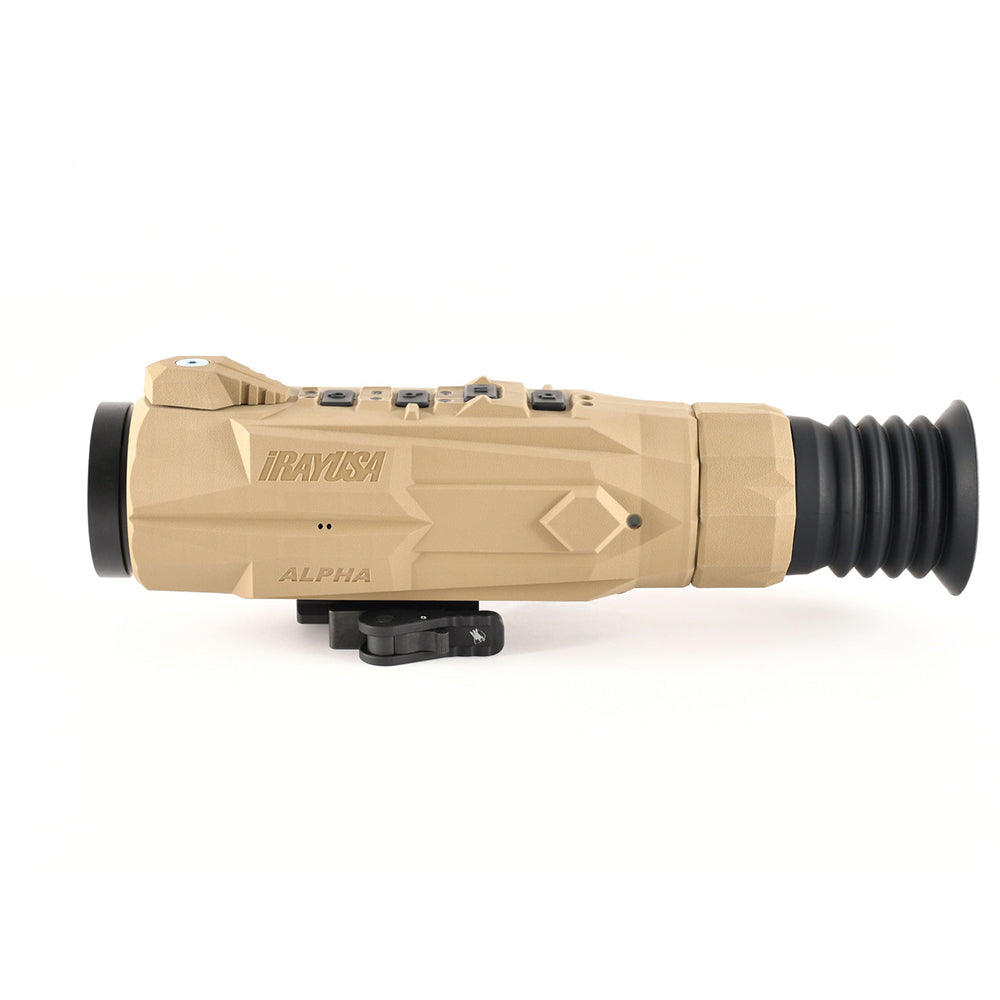

iRay Alpha | Thermal Weapon Sight

• The iRay Alpha is a cutting-edge thermal imaging device, renowned for its superior image quality and precision.
• It boasts MATRIX III image algorithm, ensuring advanced image correction and automatic image optimization.
• The device stands out in terms of its robustness, with a 1,000 G shock resistance, and a housing made from ultra-rigid, glass-filled polymer.
• It comes equipped with a considerably large internal memory of 32GB, allowing extended recording and storage of images.
• The iRay Alpha offers an impressive detection range of 2,400 yards, coupled with a wide field of view.
• Its optical and digital magnification stand at 3X and 4X respectively, providing clear and detailed images.
• The device also features a high-resolution AMOLED display, providing clear, vibrant images.

iRay Alpha Features

• High-Resolution Sensor: The iRay Alpha is equipped with a sensor resolution of 640x512, ensuring clear and detailed thermal imaging.
• Advanced Device Technology: The device incorporates thermal imaging technology, providing heat-based perspectives in various environments.
• Reliable Power Source: A Li-Ion battery pack powers the iRay Alpha, offering a run time of 6 hours.
• Innovative NUC: The device's Non-Uniformity Correction (NUC) can be manually adjusted, automatically set, or semi-automatically tuned to enhance image quality.
• Multiple Color Palettes: The iRay Alpha offers various color palettes such as White Hot, Black Hot, Red Hot, Color, and Highlight for diverse display options.
• Extensive Storage: The device comes with a substantial storage capacity of 32GB for storing images and video.
• Quick Startup: The iRay Alpha boasts a startup time of less than 10 seconds, and instant from standby.
• Durable and Resilient: The device has a recoil rating of 1,000 g/s² (300 Win./7mm Mag) and an ingress protection rating of IP67, making it robust and resistant to harsh environments.
• One-Shot Zero: This feature allows for rapid zeroing of the device, enhancing ease of use.
• Stand-by Mode: This feature contributes to energy efficiency, helping preserve battery life when the device is not in use.
• Onboard Recording: The iRay Alpha allows for onsite video and image recording, allowing users to capture and review their findings easily.
• Mobile App Compatibility: The device is compatible with a mobile app for easy control and data management.
• Warranty: The iRay Alpha comes with a 5-year warranty, ensuring long-term reliability and service.

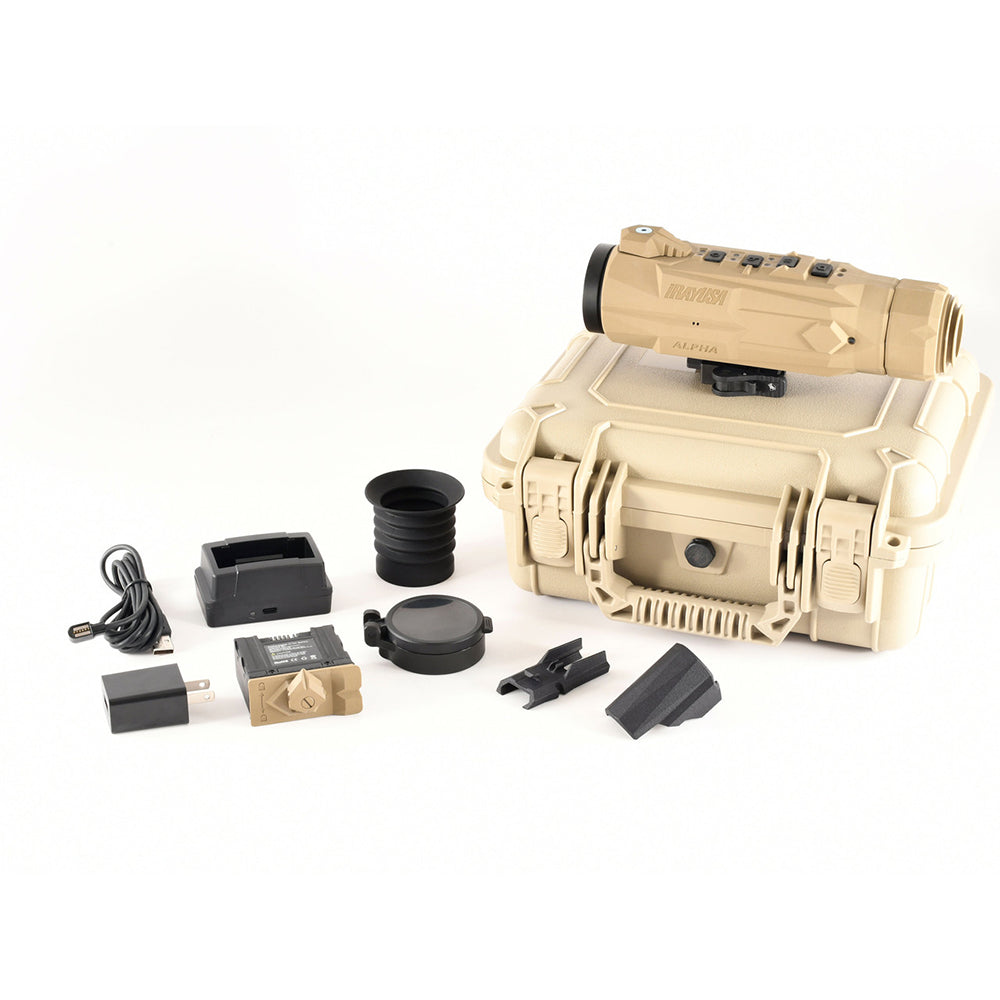

What's in the box of the iRay Alpha?

• (1) iRay Alpha Thermal Imaging Device
• (1) Objective Lens Cap
• (1) Eyeshade
• (1) Li-Ion Battery Pack
• (1) Magnetic Connector for External Power Source
• (1) Picatinny STD-1913 Rail Mount
• (1) Wall Adapter
• (1) Protective Case for Transportation and Storage
• (1) User Manual
• (1) Warranty Card (5 Years)

iRay Alpha Specifications

Optics

• Objective Diameter: 50mm
• Optical Magnification: 3X
• Digital Magnification: 4X
• Detection Range: 2,400 Yards
• Display Type: AMOLED
• Display Resolution: 1024×768
• Horizontal Angular Field of View: 8.8°
• Vertical Angular Field of View: 6.6°
• Focusing Mechanism: Manual Focus

Features & Performance

• Onboard Recording: Video and Image
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
• Reticle: 7
• Connector Type: Magnetic
• Storage Capacity: 32GB
• Picture-in-Picture: Yes
• Mobile App: Yes
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Rangefinder: Stadiametric
• Run Time: 6 hours
• Power Source: Li-Ion Battery Pack
• Wifi: Yes
• Image Capture: 640x512 JPEG
• Video Output: Analog RS-170/NTSC
• Startup Time: < 10 Seconds, Instant from Standby
• External Power Source: Yes, Magnetic Connector 5V
• Warranty: 5 Years
• Country of Manufacture: USA

Environmental Specifications

• Operating Temperature Range: -4°F to 122°F
• Recoil Rating: 1,000 g/s² (300 Win./7mm Mag)
• Ingress Protection: IP67

Physical

• Length: 9.84"
• Width: 2.28"
• Height: 2.40"
• Weight: 33.68 Oz
• Mounting Interface: Picatinny STD-1913 rail
• Housing Material: Aluminum

Sensor Specifications

• Sensor Resolution: 640×512
• Device Technology: Thermal Imaging
• Sensor Frame Rate: 50hz
• Sensor Pixel Size: 12μm
• Sensor Type: InfiRay MICRO II
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Spectral Response: 8-12 Microns
• Thermal Sensitivity: <50mk

iRay Alpha FAQs

What does the iRay Rico Alpha offer in terms of image quality?

The iRay Alpha offers unmatched image quality due to the MATRIX III image algorithm. This results in advanced image correction and automatic image optimization.

What is the operational battery life of the iRay Rico Alpha?

With a single charge, the iRay Alpha can run up to 6 hours.

What type of mobile connectivity does the iRay Alpha Thermal Scope support?

The iRay Alpha supports Wi-Fi connectivity which can be managed through its dedicated mobile app.

How quickly does the iRay Alpha Thermal Scope start up?

The iRay Alpha has a rapid startup time of less than 10 seconds and can also instantly resume from standby mode.

What is the operational temperature range of the iRay  Rico Alpha Thermal Scope?

The iRay Alpha can operate between -4°F and 122°F.

What is the detection range of the iRay Rico Alpha Thermal Scope?

The iRay Alpha has a robust detection range of up to 2,400 yards.

What type of power source does the iRay Rico Alpha Thermal Scope use?

The iRay Alpha uses a Li-Ion Battery Pack as its power source. It also supports external power source via a Magnetic Connector that operates at 5V.

Can the iRay Rico Alpha withstand shock?

Yes, the iRay Alpha is designed to be ultra-rigid with a shock resistance of 1,000 G, making it perfect for outdoor conditions.

What is the storage capacity of the iRay Alpha?

The iRay Alpha comes with a substantial internal storage capacity of 32GB.
