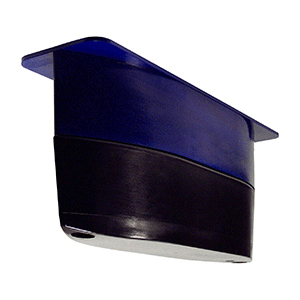

Garmin Airmar R109LHW; 2kW, 38-75kHz, 150-250kHz Thru-Hull Transducer

Airmar R109LHW 2kW 38-75kHz & 150-250kHz Thru-Hull Transducer

This plastic thru-hull mount transducer uses the low frequencies for deep water performance and high wide frequencies for shallow water performance.

A 2 kW in a slightly smaller package, this bare wire transducer has a depth of 8,000 feet; an operating frequency of 38 to 75 kHz and 150 to 250 kHz; a beamwidth of 9x23 degrees or a constant 25 degrees; and a 0 to 25 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications

• Chirp: Low/High Wide
• Cable Length (Feet): 49'
• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Pins: Bare Wires
• Box Dimensions: 14"H x 17"W x 28"L WT: 35 lbs
• UPC: 753759123567
