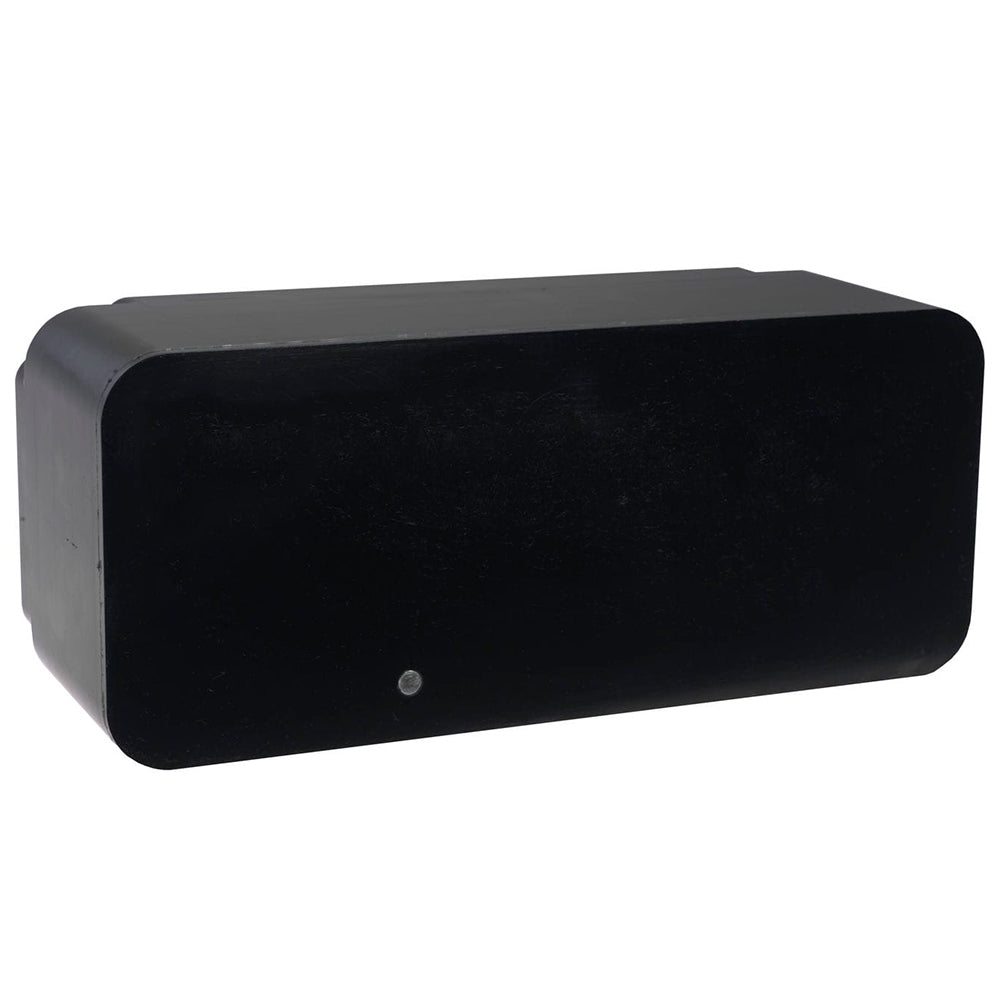

Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer; 28-60, 150-250kHz

Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 & 150-250kHz

This pocket mounted transducer uses very narrow beams and low frequencies and wide beams for high frequencies to send depth and temperature to your Garmin Marine Network.

A pocket version of the R599LH, this 1 to 3 kW bare wire plastic transducer has a maximum depth of 10,000 feet; an operating frequency of 28 to 60 kHz and 150 to 250 kHz; and a beamwidth of 9x23 degrees or a constant 25 degrees. The pocket mount is installation dependent.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications

• Temperature: Yes
• Speed Included: No
• Pins: Bare Wires
• Mounting Style: Pocket
• Cable Length (Feet): 70'
• Chirp: Low/High Wide
• Imaging: Standard
• Box Dimensions: 12"H x 13"W x 17"L WT: 33.5 lbs
• UPC: 753759123628
