Vendor: Rex E-Bikes
SKU: 1E027-0044405
$1,699.00
$1,899.00
$1,699.00

Free Shipping

Enjoy Free Shipping on All Orders Over $800*

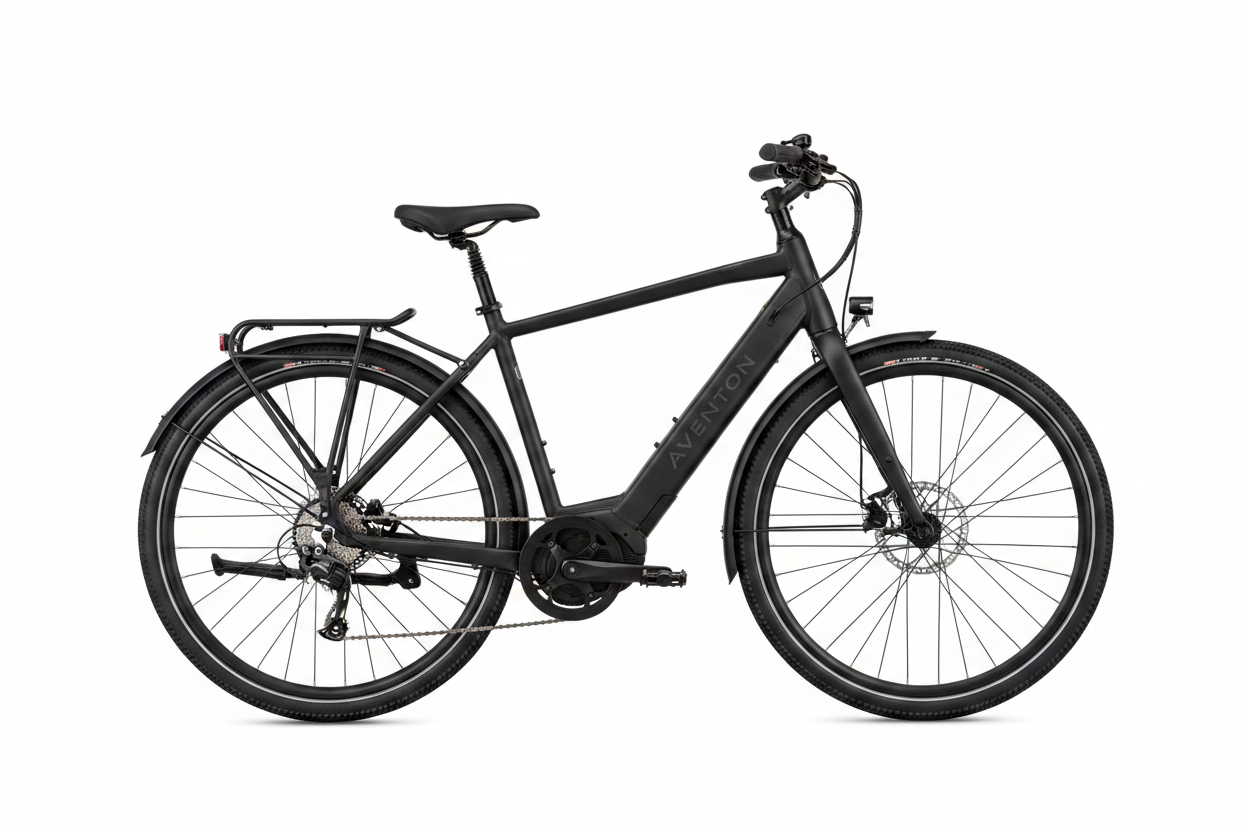

Model: Matte Black
Size: Regular 5'3” - 5'10”
Subtotal: $1,699.00

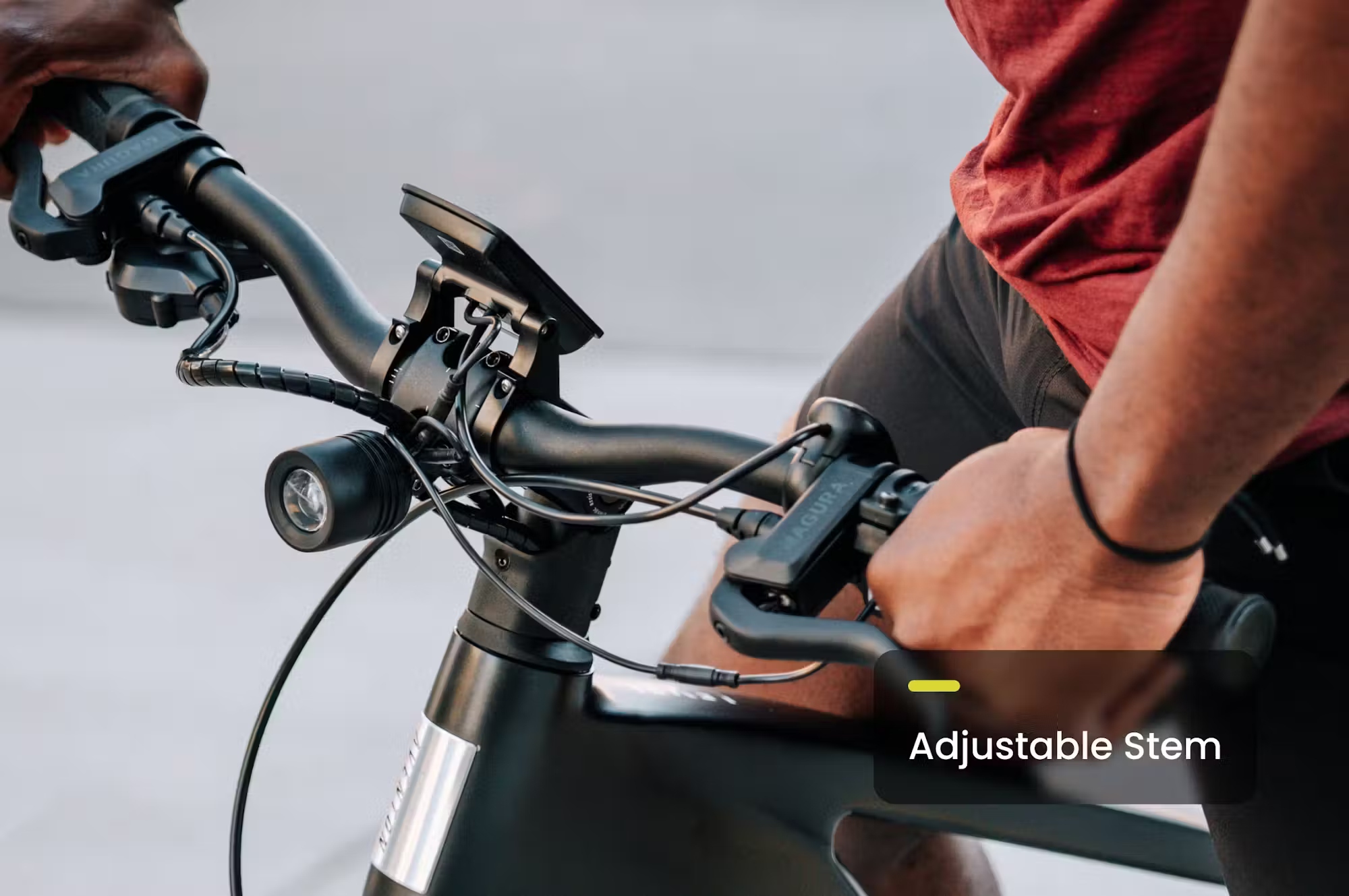

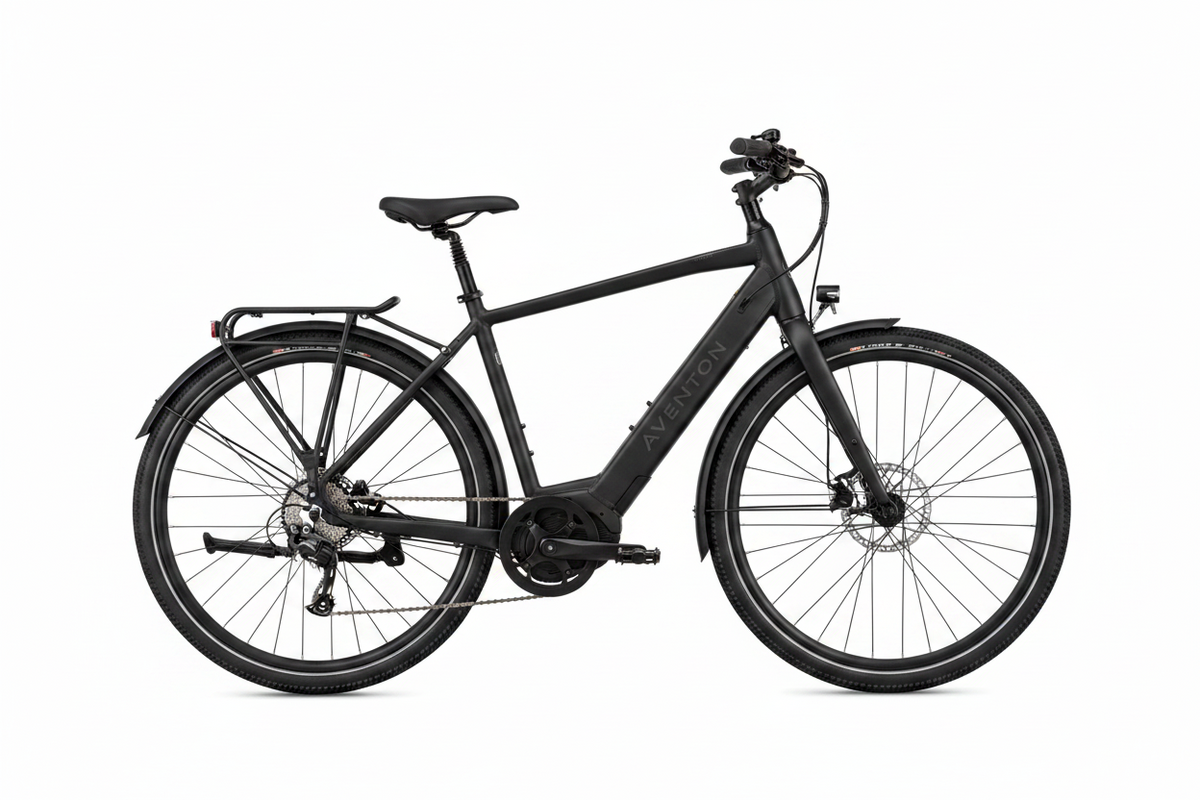

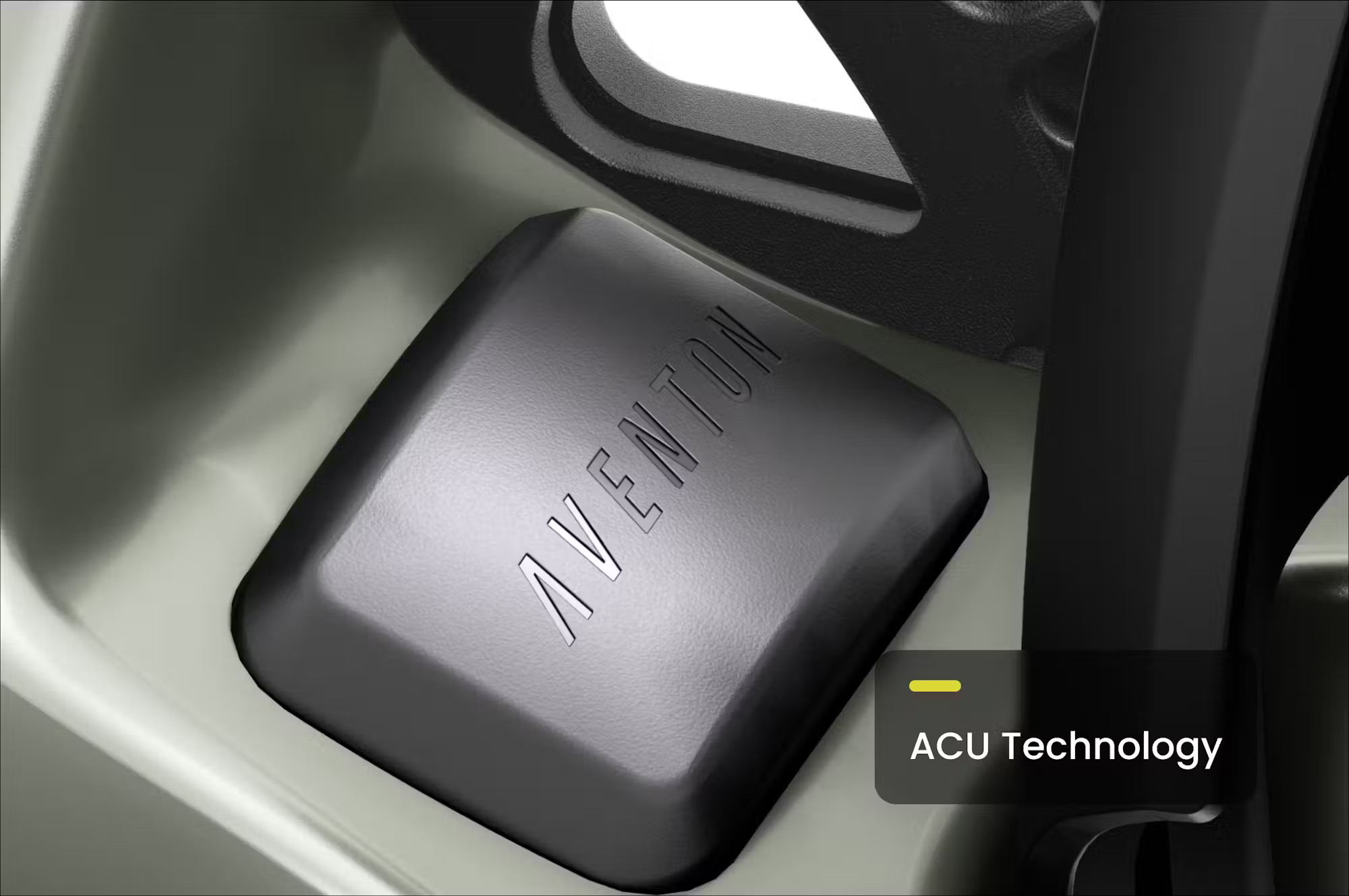

Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3.

Top Speed: Max 28 MPH
Range: Up to 70 Miles

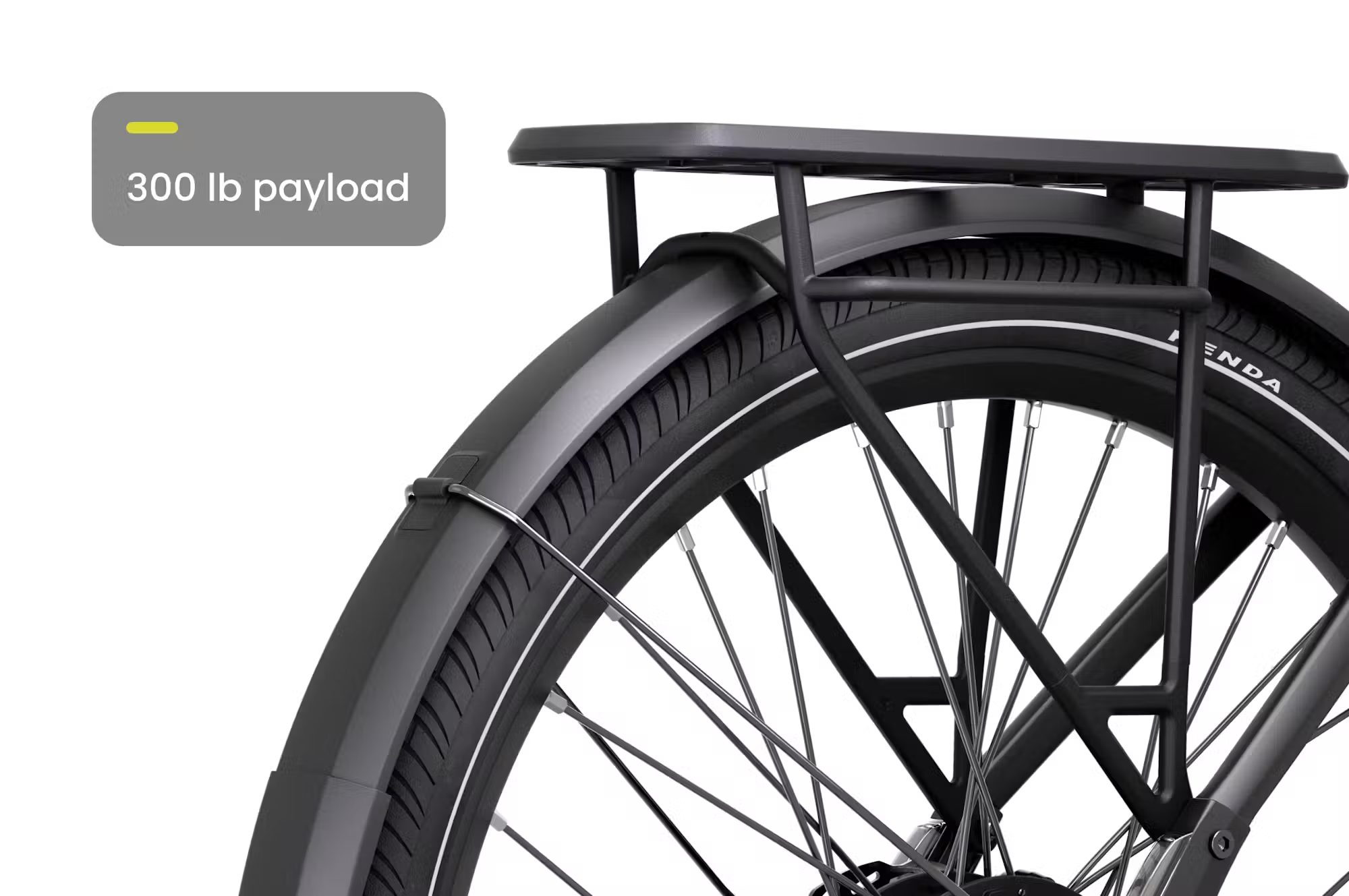

Payload Capacity: 300 lbs
Motor Power: 500W, 864W Peak in Boost

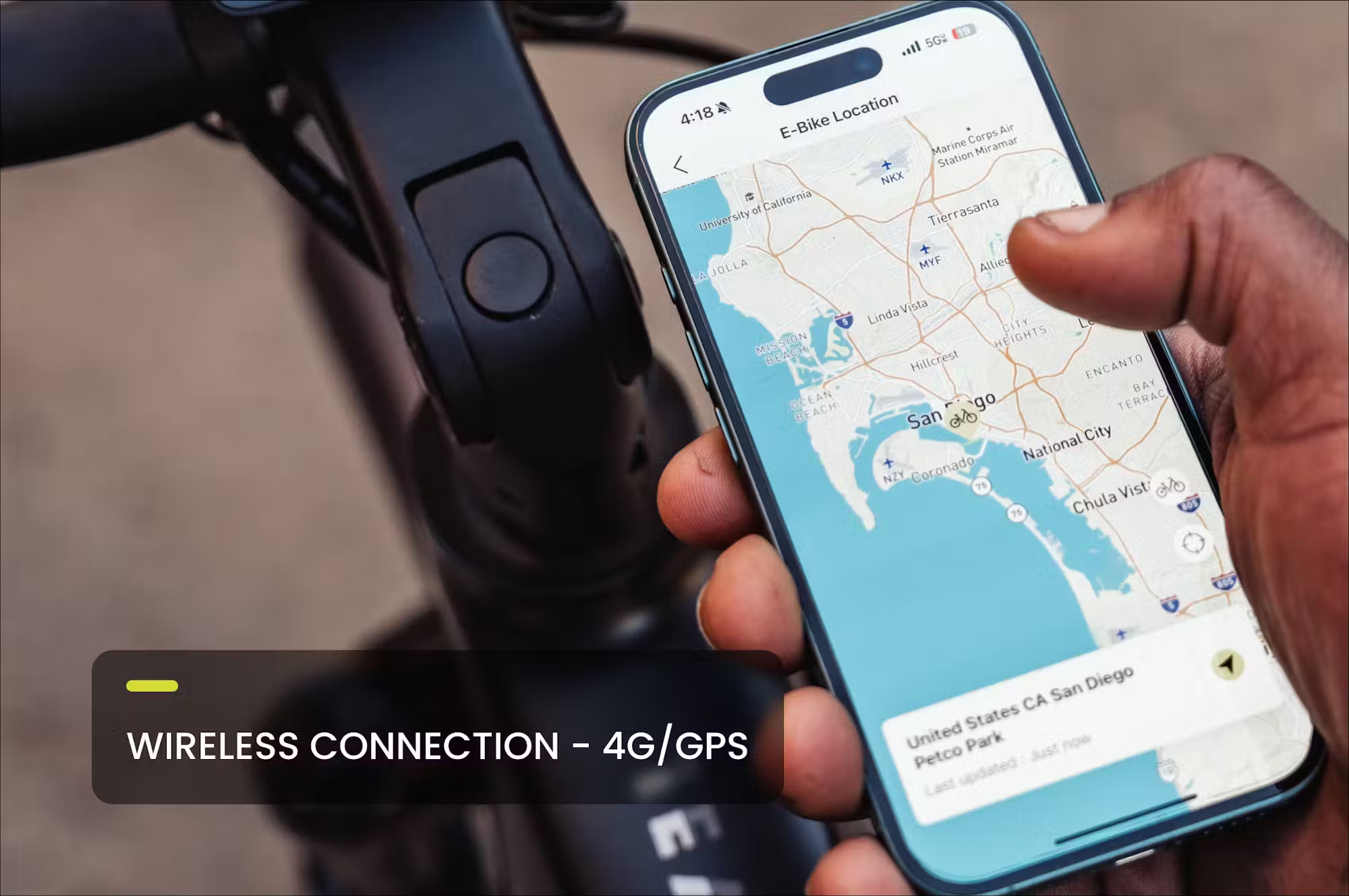

Wireless Connection: 4G/GPS

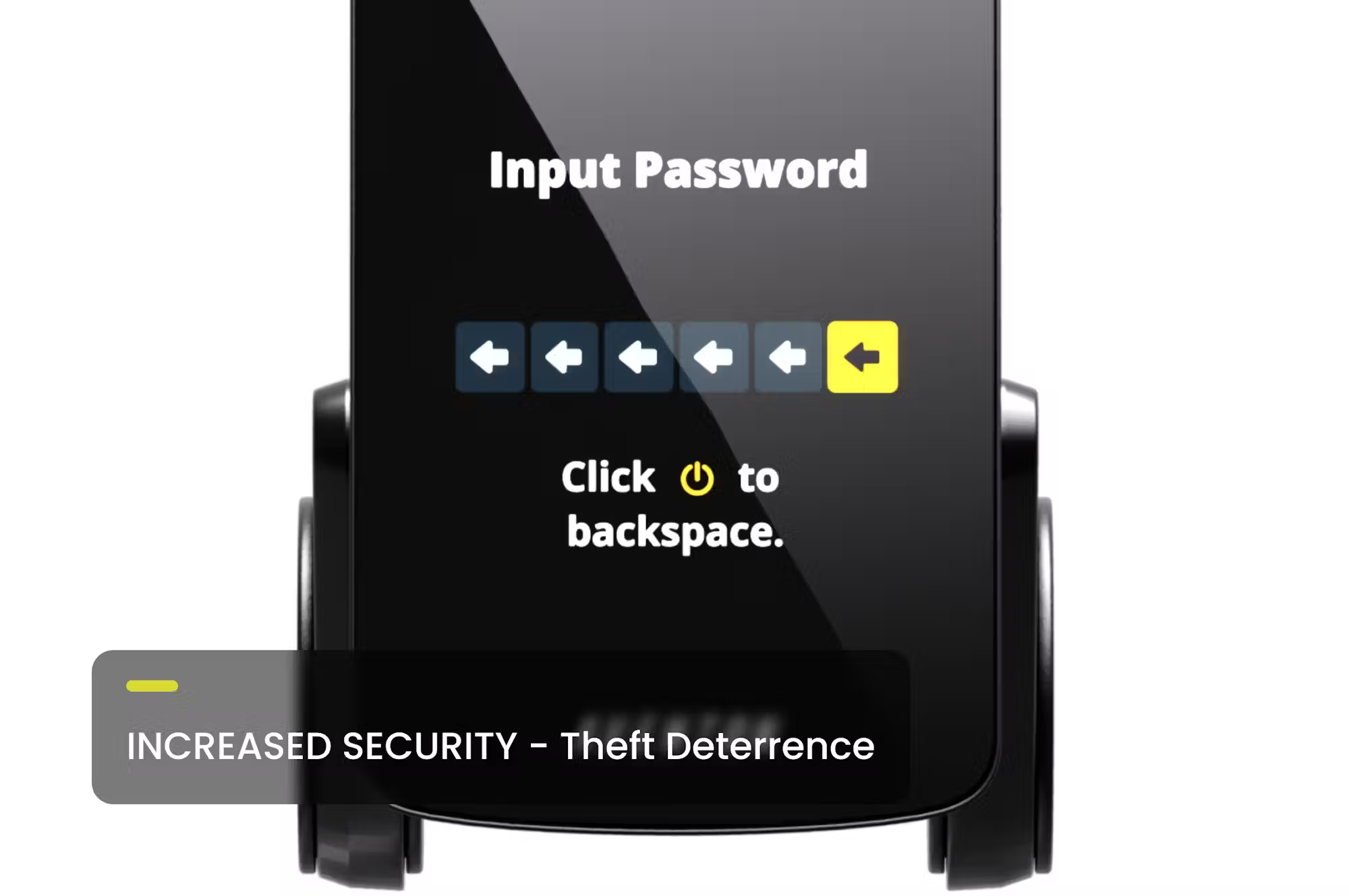

Increased Safety: Theft Deterrence

Product Specifications

Weight: 67lbs
Total Weight Limit: 300 lbs
Box Size: 61"x13"x34"
Rider Height: 5'3" - 6'4"
Ebike Class: Class 2 Ebike
Range: Up to 70 Miles
Battery Safety Certifications: Certified to UL 2271
Safety Certifications: UL Safety Certified
UL 2849
Ideal Use: Commuting
Pedal Assist: 3 Levels (with Ride Tune Customization)

Frameset

Frame: 6061 Aluminum, Gravity Cast Front Triangle
Fork: Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Rear Spacing: 142mm
Fork Spacing: 110mm

Wheelset

Front Wheel: 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
Rear Wheel: 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
Tires: Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

Ebike System

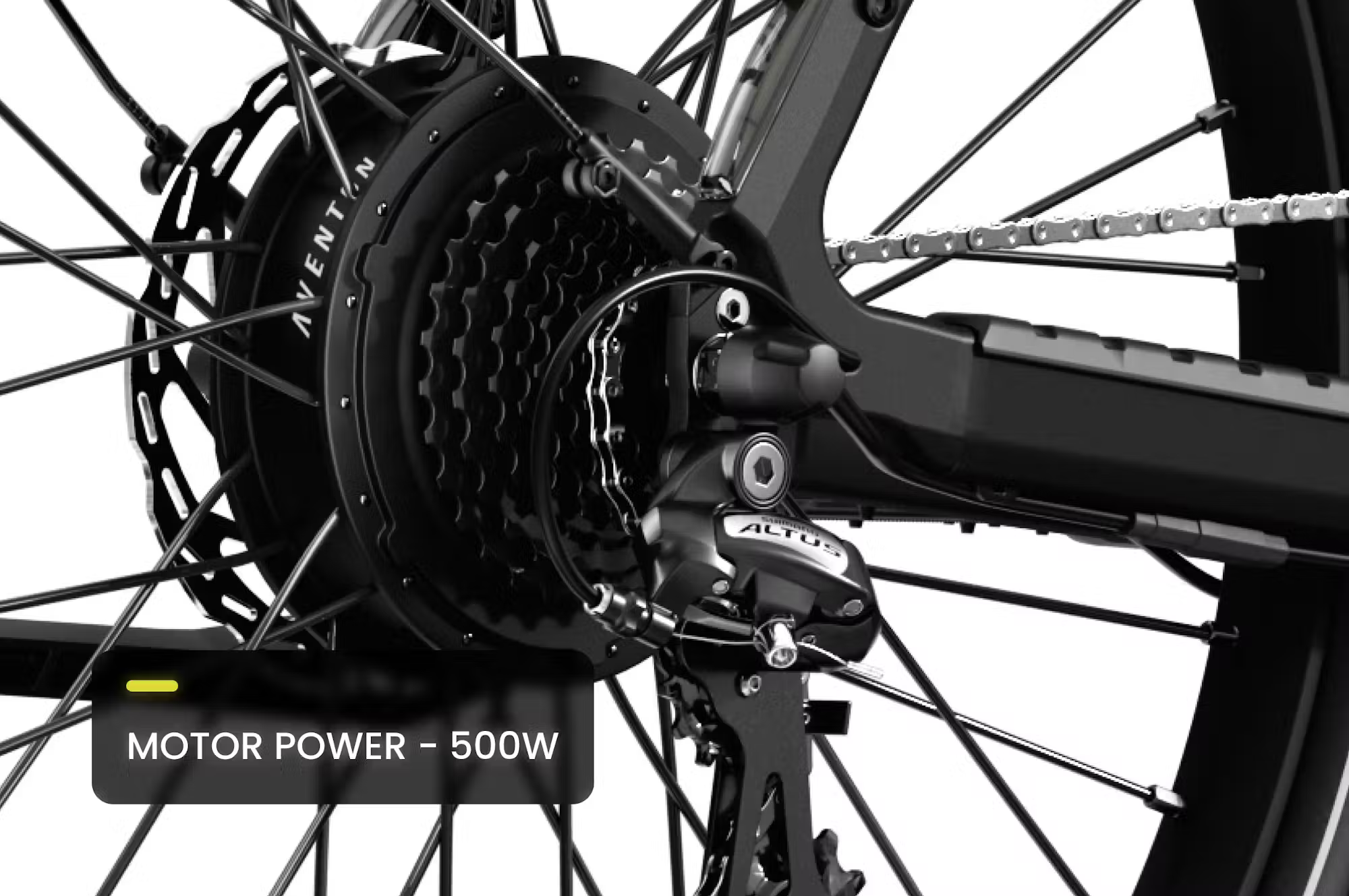

Motor: 36V, 500W (sustained), 864W (peak)
Motor Torque: 60 Nm
Display: Aventon BC280
Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight: 8.7lbs
Controller: 36V, 24A

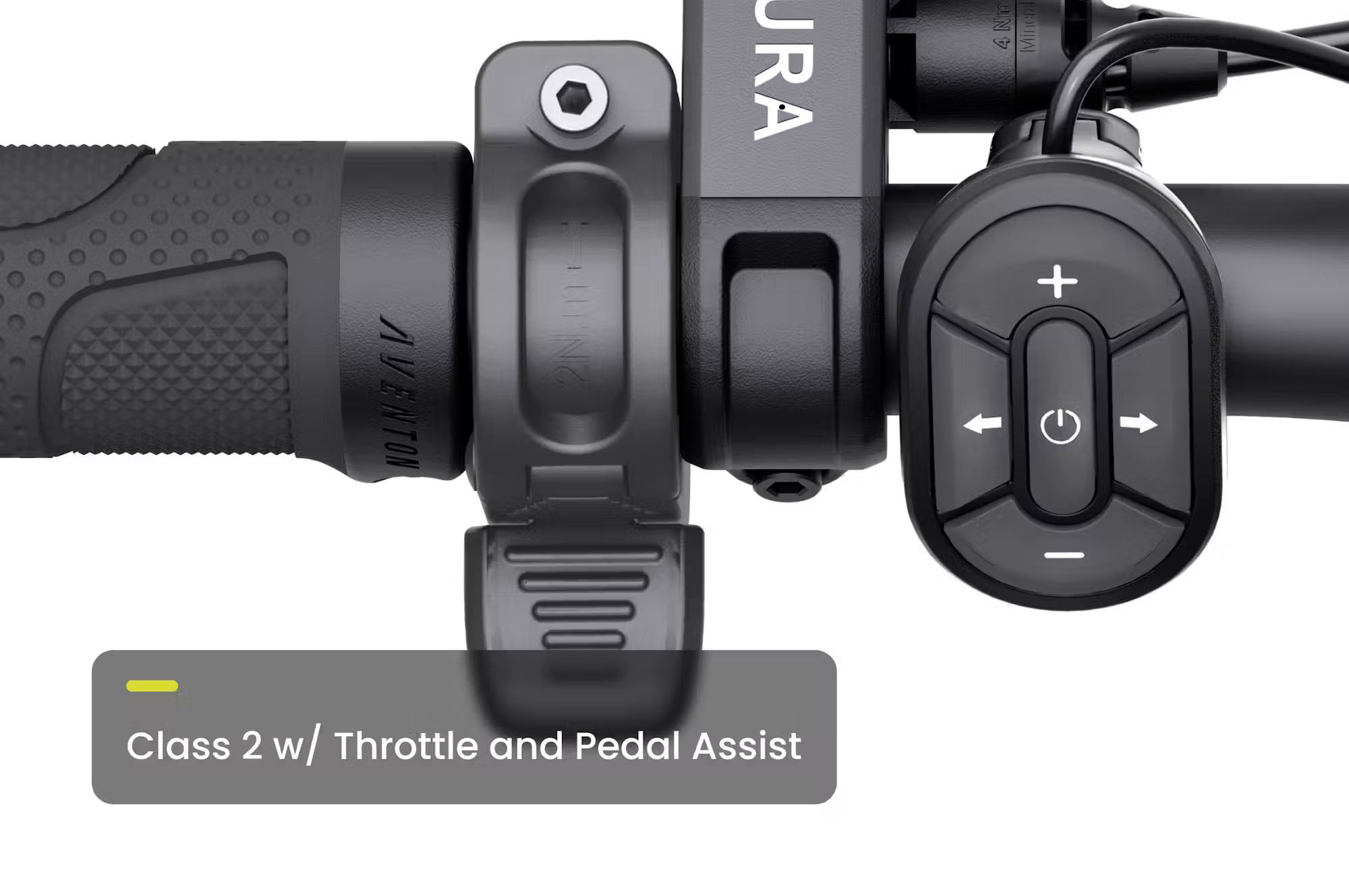

Throttle: Aventon LH Handlebar Mounted
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: 36V Output: 42V/ 4A
Charging time from 0% to 100%: 5 hours
Lights: Front and rear lights integrated
Speed: Class 2

Brakes

Front Brake: Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake: Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
Rear Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor

Drivetrain

Rear Derailleur: Shimano Altus RD-M310
Shifter: Shimano 8 Speed Trigger SL-M315-8R
Chain: 7/8 speed 120L
Cassette: 12-32T / 8 Speed Shimano CS HG200-8
Chainring: 48T
Crankset: 3pc, 170mm crank arm
Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals: 9/16" Composite Platform

Cockpit

Saddle: Aventon Saddle
Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: Aluminum 31.8mm, 680mm
Grips: Aventon Lock on grips
Headset: Sealed Bearing Headset
