Motor Power: 1000W Peak
This folding E-bike features cruise control and a removable battery for convenience and ease of use. With a sleek and compact design, it is perfect for commuting or leisure riding. Enjoy a smooth and effortless ride with this advanced electric bike.
Description
Start your outdoor adventure! VIVI M026TGBUL is a full-suspension folding electric mountain bike with excellent performance. With a powerful 1000W peak gear motor, 48V 374.4Wh battery, 5-level pedal assist, 21-speed gear system, high-strength front suspension fork and rear spring shock absorber, the M026TGBUL electric mountain bike combines the off-road performance of a mountain bike, the convenience of a folding electric bike and the comfort of a city bike, bringing more fun to riders and novices. Whether you're traversing real mountains, or just zipping through the urban jungle, this electric bikes have what your adventure needs. You can easily ride over gravel, rain, dirt, sand and enjoy the ultimate e-bike adventure.

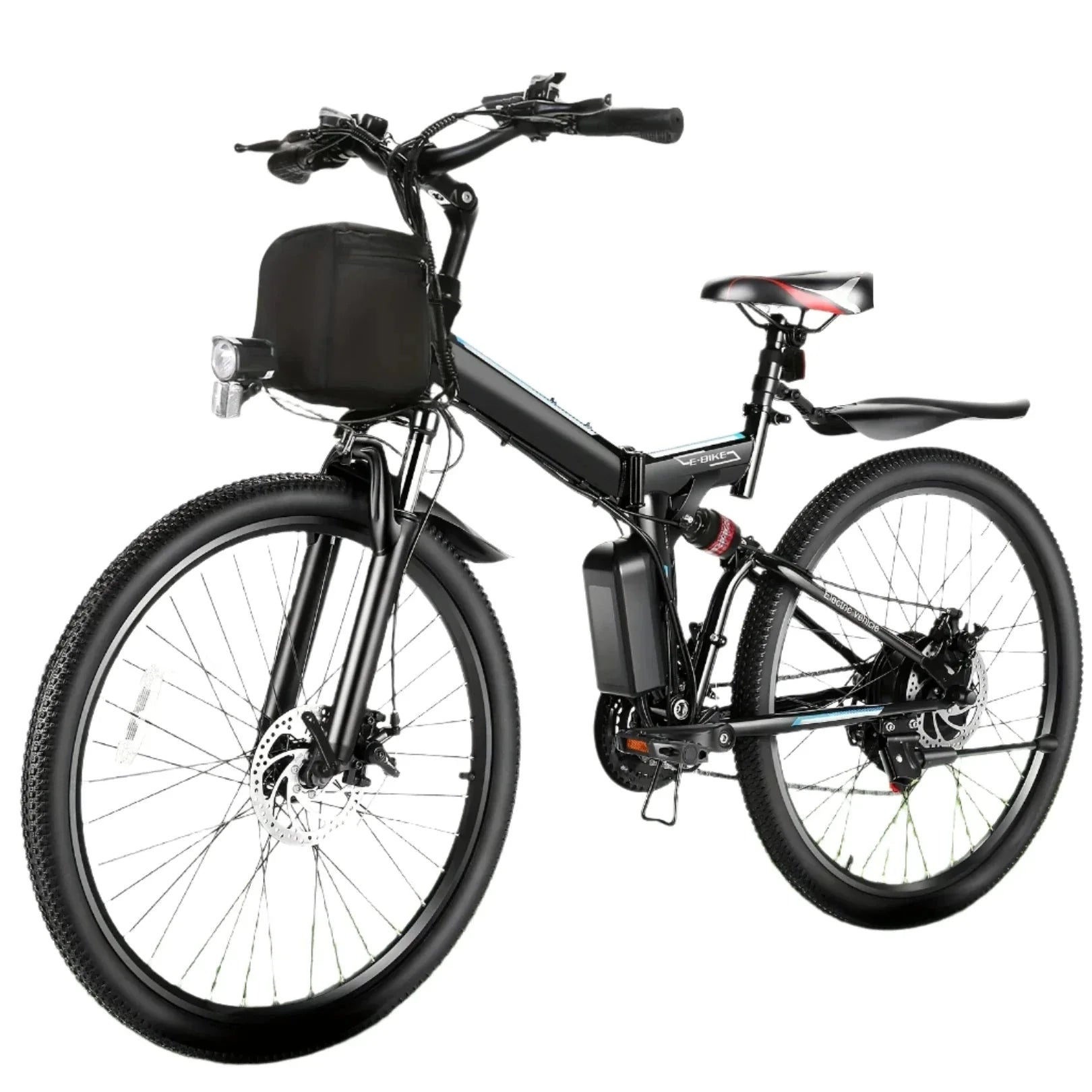

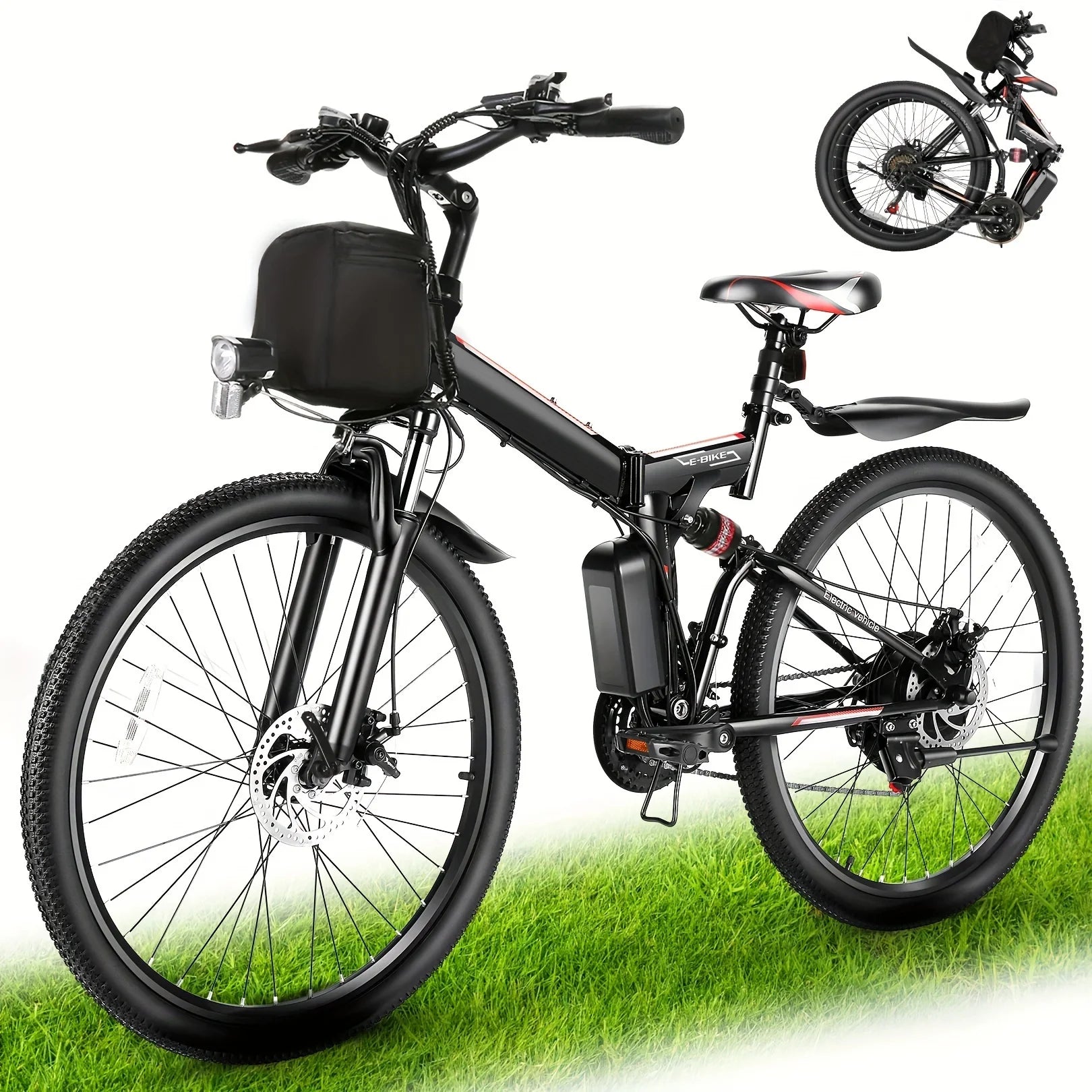

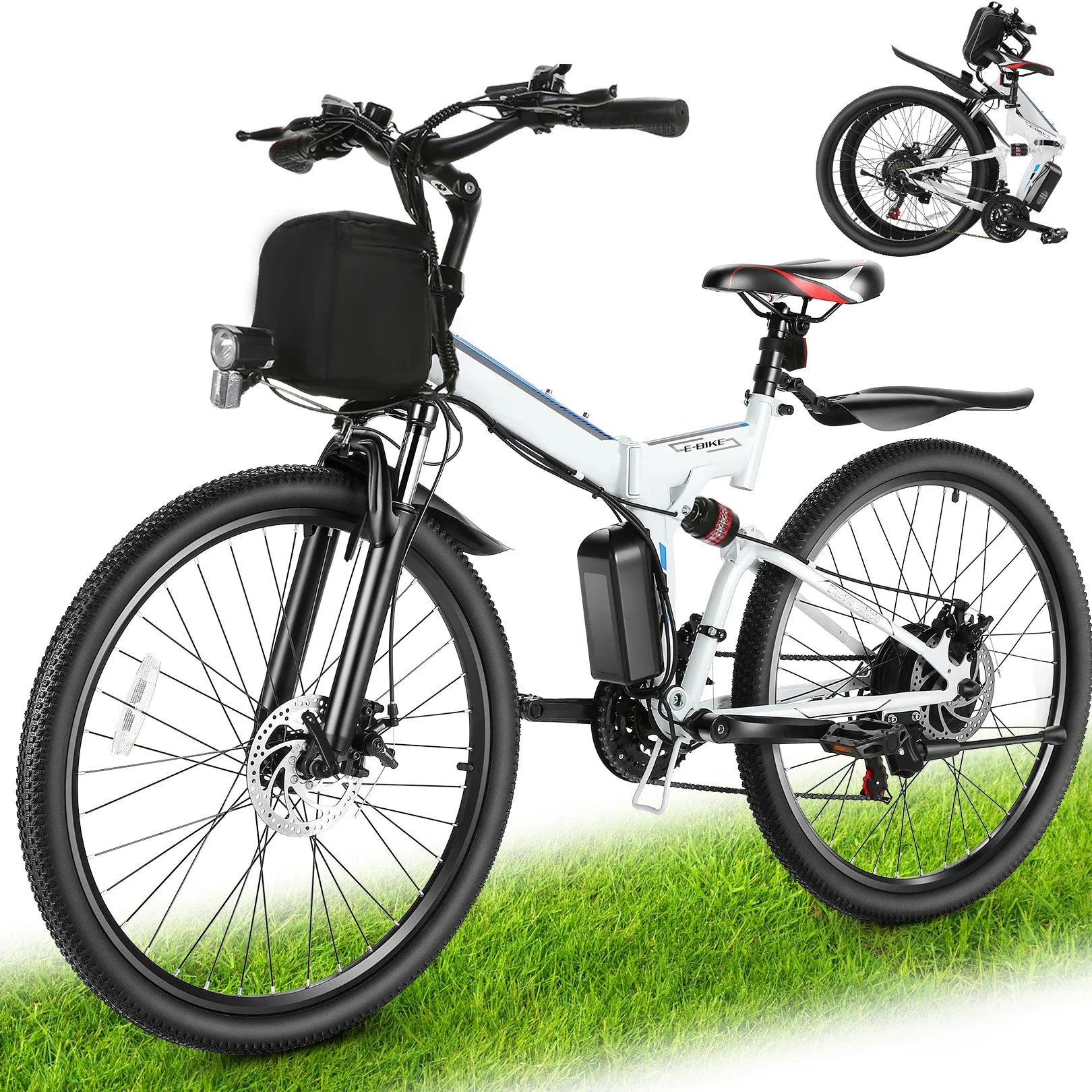

Vivi M026TGB UL | Folding Electric Mountain Bike
Vivi M026TGBUL provides riders with a professional and most cost-effective full-suspension folding electric mountain bike
Battery: 48V 7.8Ah
Charging Time: 4-6 Hours
Range: 50 Miles
Max Speed: 22 MPH
Max Capacity: 330 Lbs
Features
High Speed 1000W Peak Motor
The electric bike is equipped with 1000W peak high speed brushless motor. It can reach 21.7 miles per hour, providing greater freedom and more fun for everyone who loves cycling and those who are new to cycling.
48V 374.4Wh Removable Battery
Use removable 48V 7.8Ah 374.4Wh lithium-Ion battery. It reaches a range of 44-50 miles when riding in assisted mode or 22-25 miles when riding with full power.
Double Shock Absorption
The electric bike is equipped with a shock-absorbing front fork and rear shock absorber, double shock absorption, give you a comfortable riding experience when bumps in the road.
Smart LCD Display
With the 48V Intelligent Digital LCD Display and bell. You can use the electric mode to pursue faster speeds, commute or exercise, or you can choose to turn off the power to enjoy the fun of riding.
Diverse Riding options
Mechanical front and rear disc brake design, professional Shimano 21-speed transmission system, can provide various speed options. It's suitable for mountain biking and urban cycling and commuting.
Foldable and Adjustable
The electric bike adopts lightweight carbon steel collapsible frame for quick folding and easy storage. Equipped with adjustable seats, handlebars, it can adapt to people of different heights and weights.
Performance
Model: M026TGBUL
Color: Black Blue / White Blue / Black Red
E-bike Class: 2
IP Level: IP54
Regular Speed: 15.5MPH
Max Speed: 21.7MPH
Max Range: 50 miles
Ebike Range: 22-25 miles
PAS Range: 44-50 miles
Speed Mode: Low / Mid / High
Bicycle Weight: 55Ibs
Load Capacity: 330Ibs
Package Size: 54x9.5x26 inches
Package Weight: 66 lbs
Rider Heights: 5.2-6.2 ft
Rider Age: 16+
Folding: Yes
Rear Rack: Optional
Riding Mode: Pure Electric / Pedal Assist / Normal Bike / Assist Push / Cruise Control
Certification:
SGS | UL 2849/2271
GCC | CPSC 1512
Electronics
Motor: 1000W Peak Brushless Hub Motor, 75Nm
Battery: 48V 7.8Ah 374.4Wh Lithium-ion Battery
Controller: 48V 15A Brushless Motor Controller
Display: 48V Intelligent Digital LCD Display
Charger: US Plug 54.6V 2A Smart Charger
Charging Time: 4-6 Hours
Pedal Assist: Lntelligent 5 Level Pedal Assist
Sensor: 12 Magnet Cadence Speed Sensor
Throttle: Half Twist Throttle+Thumb Throttle
Bell/Horn: Integrated Handlebar Bell
Front Light: 48V Integrated LED Headlight
Tail Light: Quick Release Rear Reflector
Wiring: Waterproof Integration Cable
USB Ports: Without
Components
Frame: High Carbon Steel
Frame Type: Step-Over
Fork: Forged Iron Alloy, Φ25.4×445mm
Suspension: Coil Spring Suspension Fork, 60mm Travel
Shock Absorber: 100x24mm 850lbs Shock Absorber
Shifter: Shimano SL-TX50 7 Speed Thumb Shifter
Derailleur: Shimano RD-TZ500, FD-TZ500, 7-speed
Gearing: Shimano 3 x 7-speed, 14-28T
Stem: Aluminum, Φ25.4×180×90×φ31.8mm, 90º
Handlebar: Custom Formed Aluminum, 680×φ31.8mm
Headset: Sealed Bearing Headset
Bottom Bracket: 122.5mm Square Thread Bottom Bracket
Grips: Imitation Leather Ergonomic Grips
Saddle: Ergonomic Breathable Sport Saddle
Seatpost: Adjustable Φ28.6 x 220mm Seatpost
Seatpost Clamp: φ30mm Quick Release
Brakes: 160mm Double Mechanical Disc Brakes
Tires: 26 x 1.95" 30TPI Puncture-resistant Tires
Rims: 36H Double Wall Aluminum Rims
Calipers: Front & Rear Mechanical Brake Calipers
Brake levers: Alloy Levers with Motor Cutoff Switch
Brake Pad: SA 160mm Cassette, Semi-metallic
Spokes: 13G Black Stainless Steel
Chain: KMC Aluminum Alloy Chain, 104 links
Freewheel: Aluminum 7-speed Freewheel, 14-28T
Fenders: Included, Full Coverage Front and Rear
Kickstand: Heavy-duty Aluminum, Side-mounted
Rear Rack: Optional
Crank Set: 42T Chainring, 170mm Crank, Forged Alloy Dual-sided Aluminum
Pedals: Standard 9/16" Forged Plastic Pedal with BS Reflectors
Geometry
Total Length: 66.9inch
Handlebar Height: 38.6-42.5inch
Handlebar Length: 25.2inch
Handlebar Diameter: 0.87inch
Crank Length: 6.7inch
Seat Height: 32.3-37.0inch
Seat Tube Length: 16.9inch
Handlebar Reach: 22.1inch
Seatpost Diameter: 1.13inch
Standover Height: 28.7inch
Wheel Diameter: 26.0inch
Wheel Width: 1.95inch
Wheelbase: 40.5inch
Load Capacity: 330Ibs
Folding Dimensions: 35.8x34.3inch
Rider Heights: 5.2-6.2 ft
Bicycle Weight: 60Ibs (battery included)
Bicycle Dimensions: 66.9x9.5x42.5inch
